Suspensions

The catenary is the purest of pure forms. Any hanging chain, rope or cable will naturally conform to the same curvature. While they are normally considered in isolation as structural models of perfect equilibrium, our catenary projects attempt to entangle catenaries, rendering them impure, but interdependent. Designed as interconnected sets, these catenaries collectively add up to something beyond themselves: implied surfaces, captured motion, spatial enclosure and acoustic absorption.

York-Canopy-Options-no-txt-2048x1017

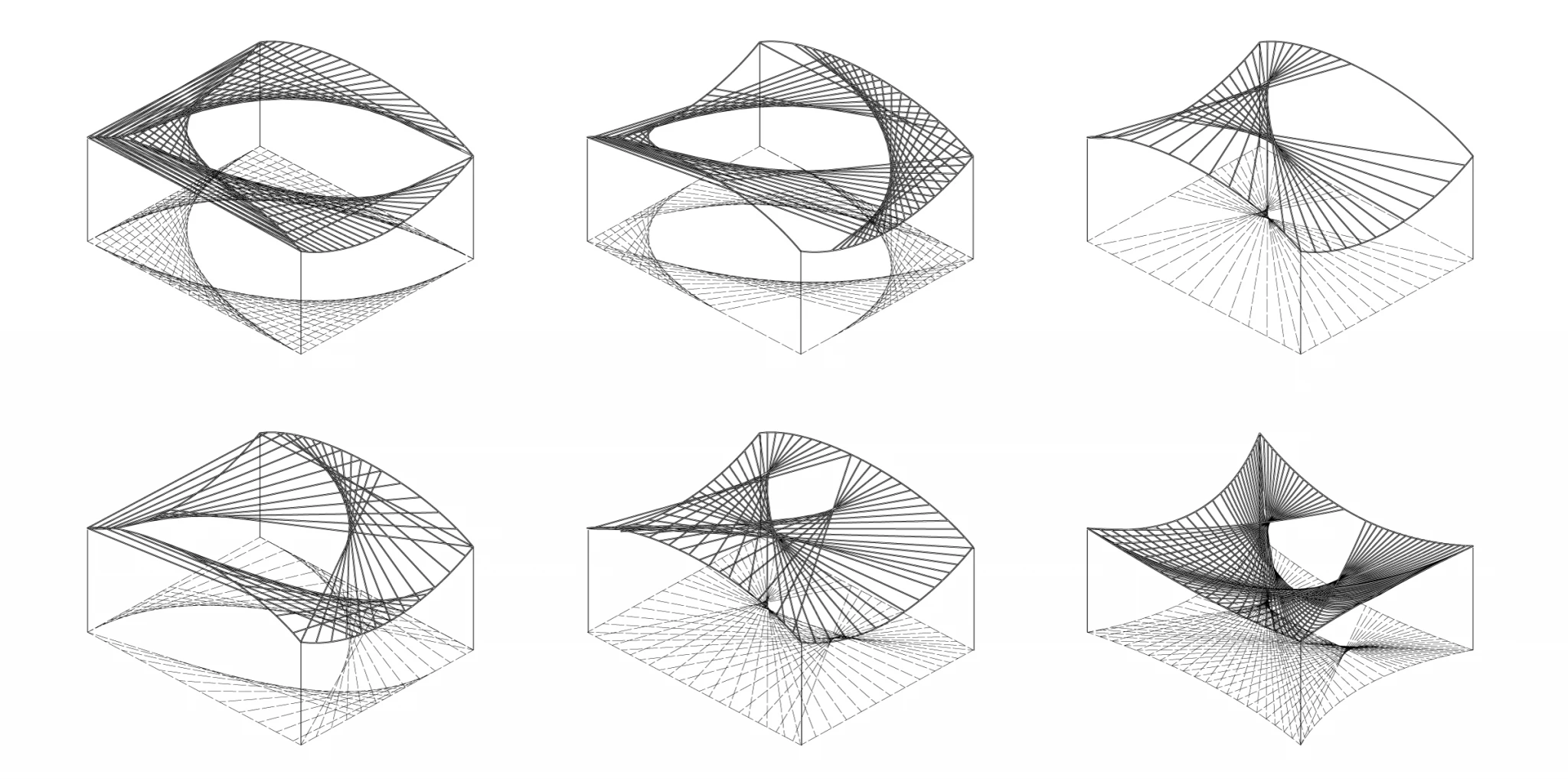

The York Canopy Options

York-Plan-Section-2048x1096

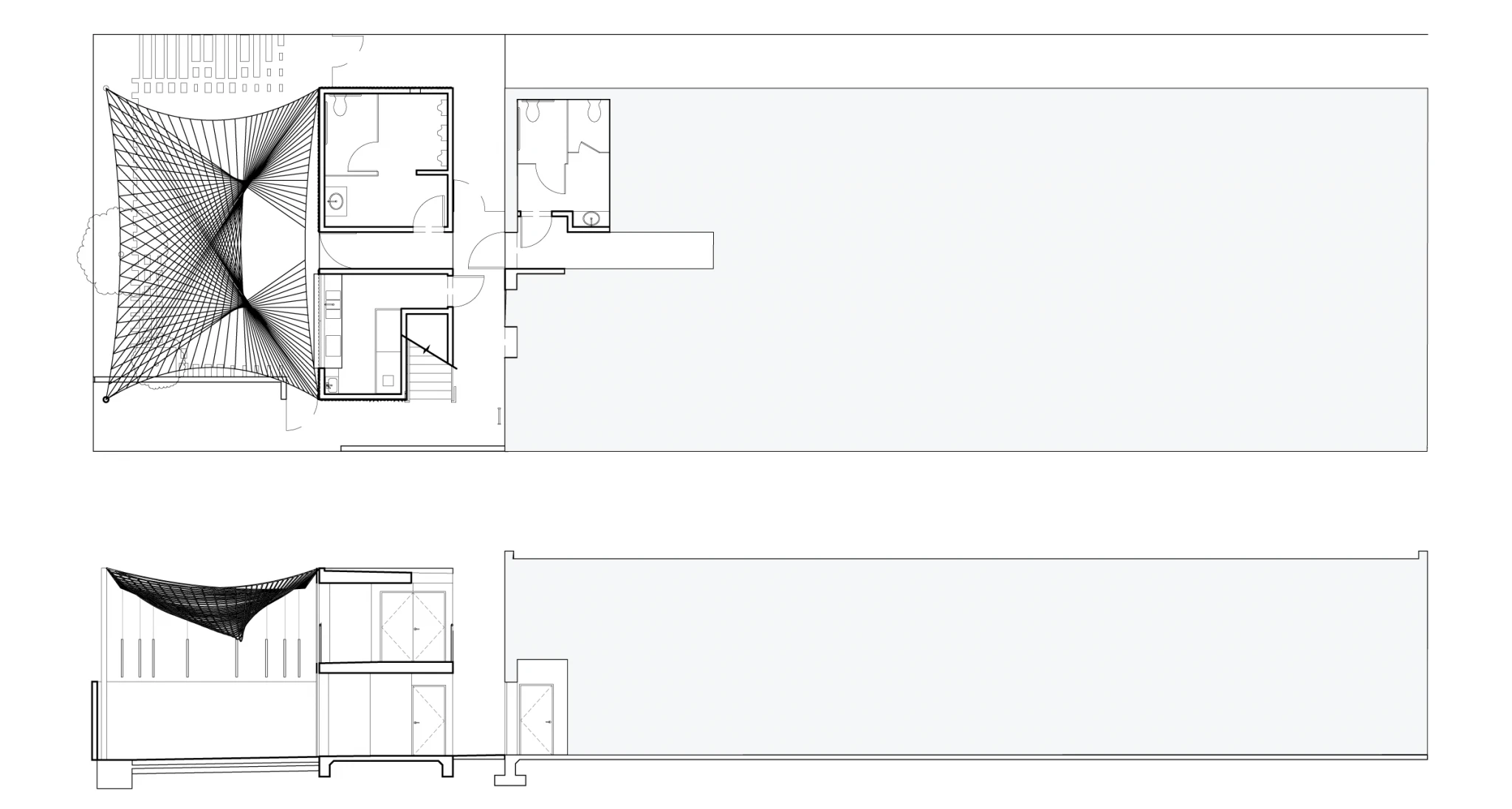

The York: Plan, Section

3-FreelandBuck-York-2048x911

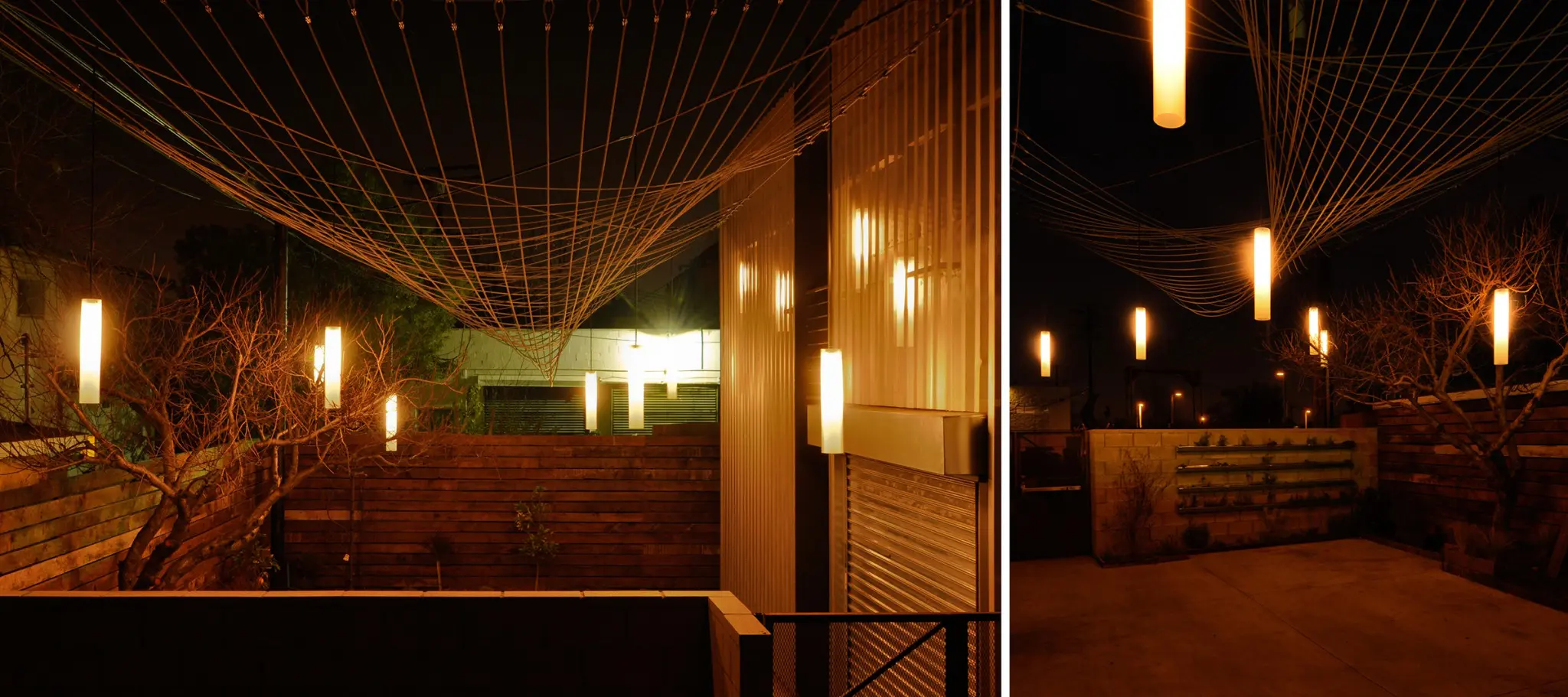

The York Canopy

4-FreelandBuck-Whorl

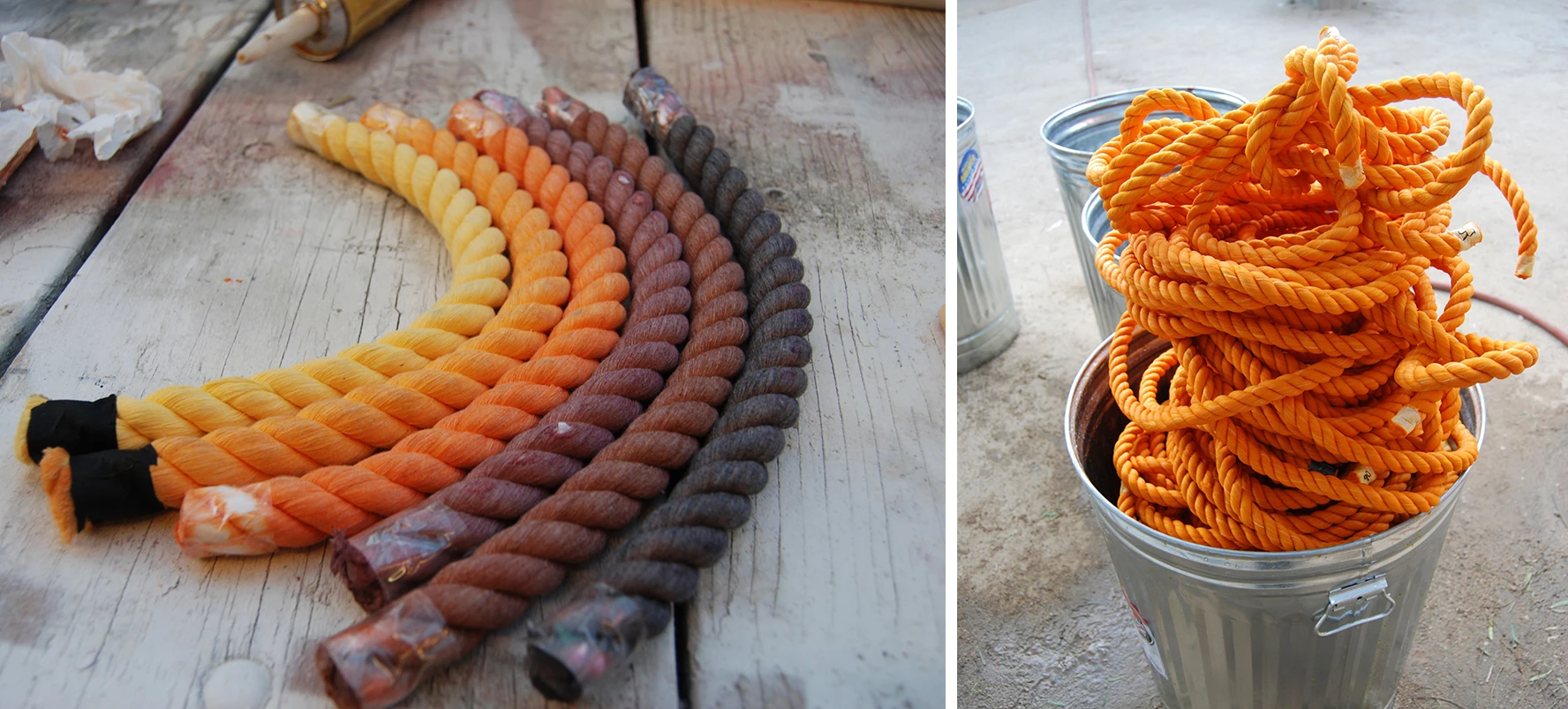

Catenary Whorl

5-FreelandBuck-Whorl-2048x1359

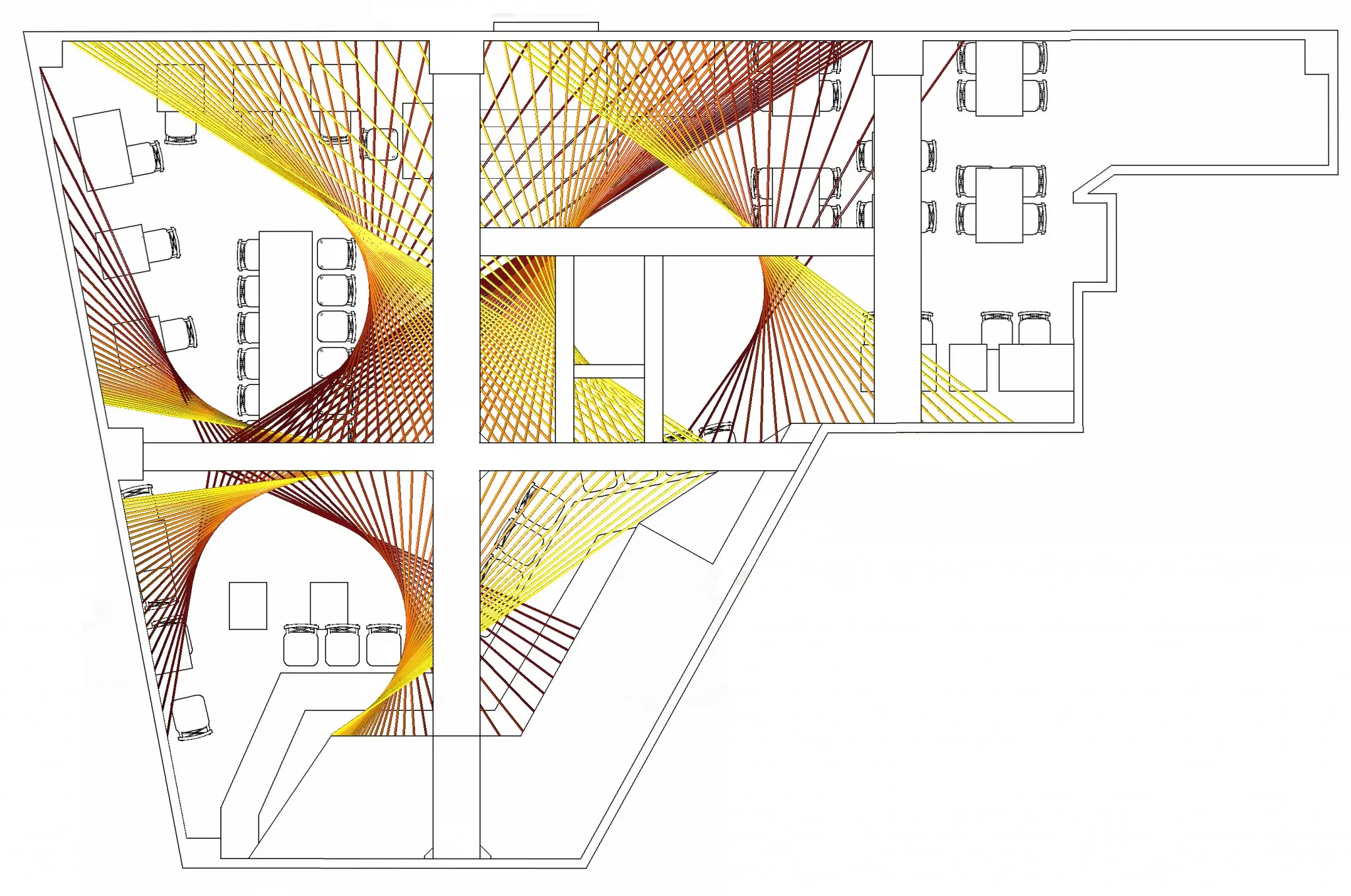

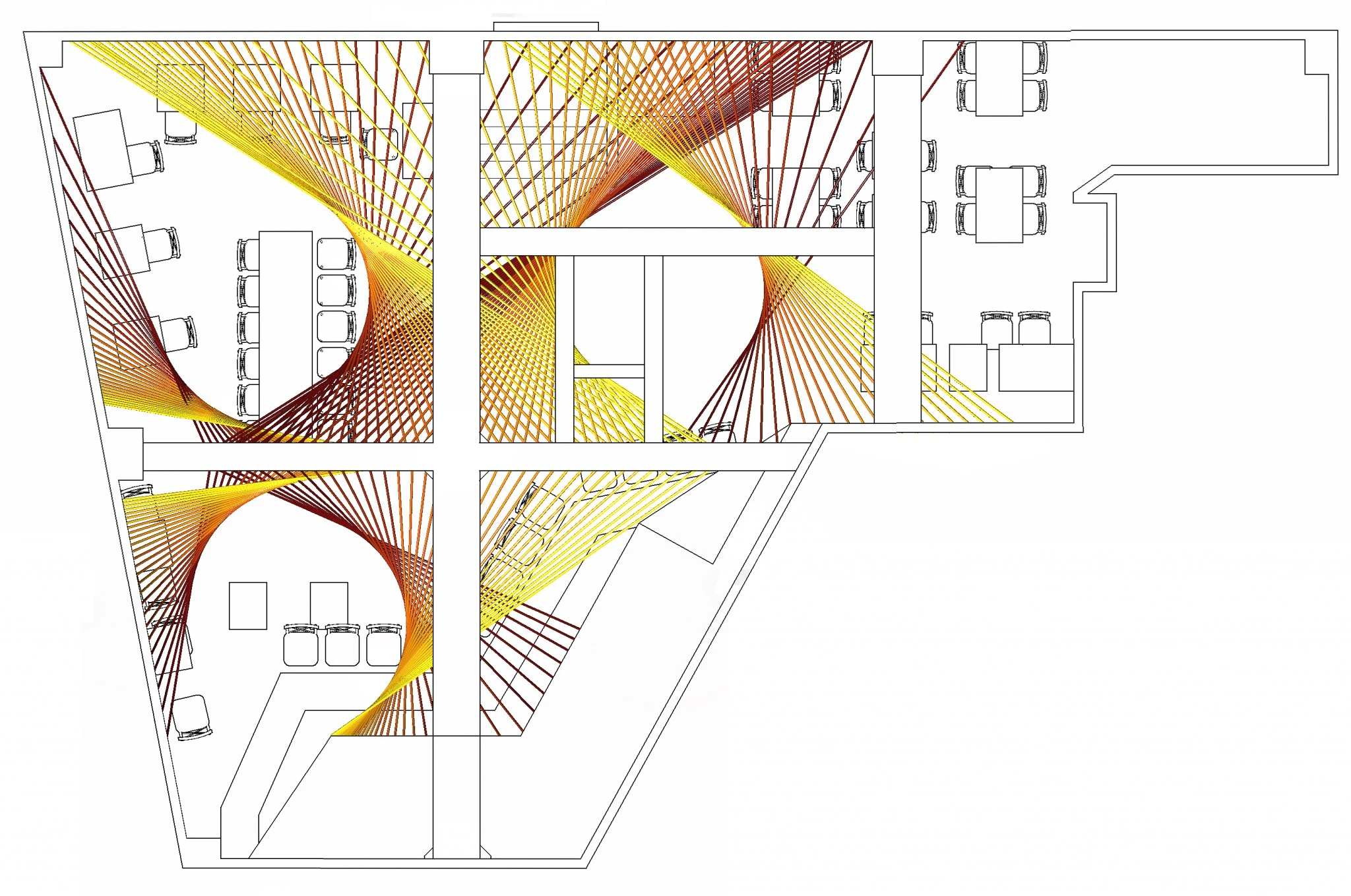

Catenary Whorl Plan

7-FreelandBuck-Whorl-2048x1012

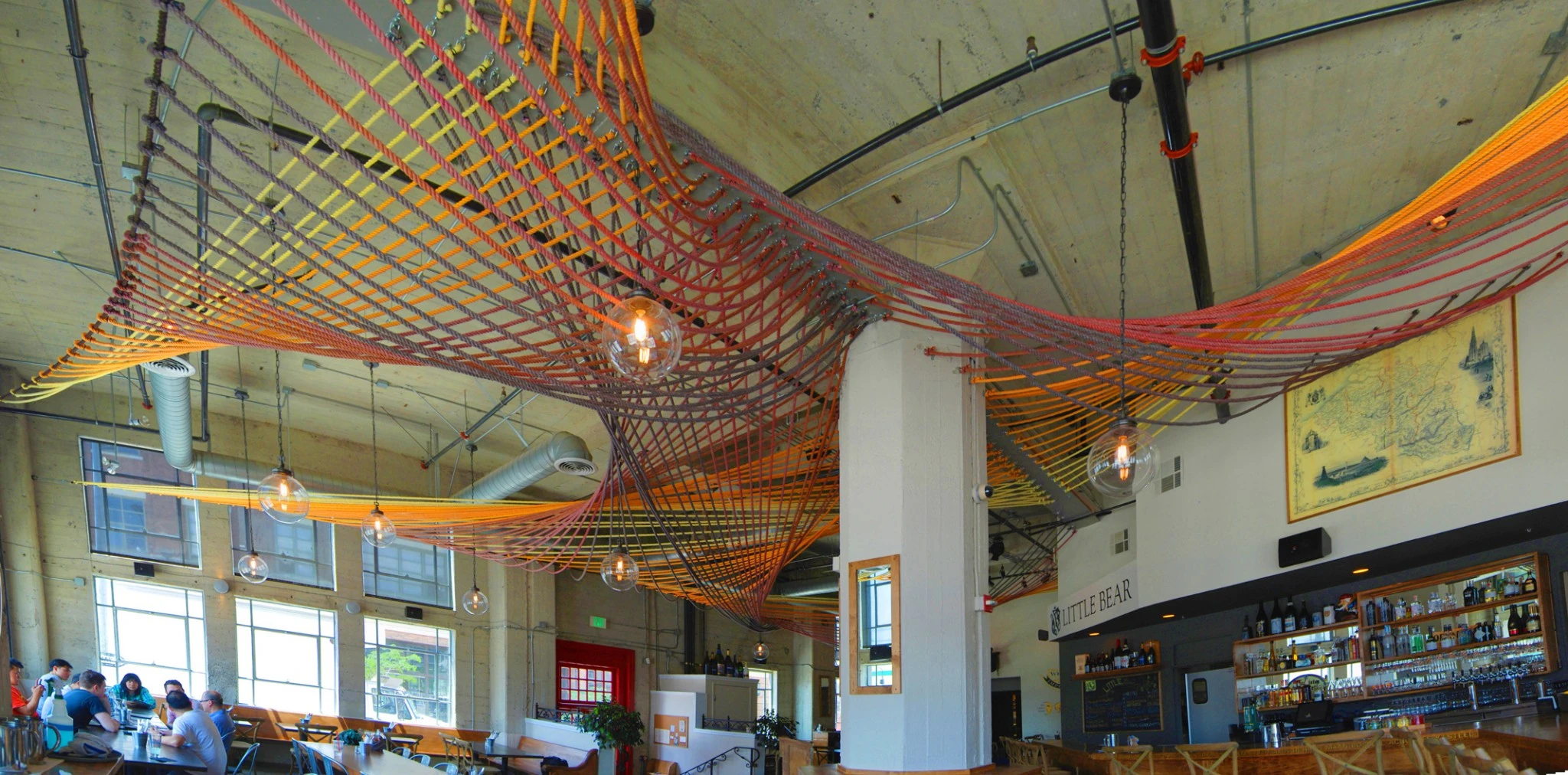

Catenary Whorl

8-FreelandBuck-Sqirl-2048x1363

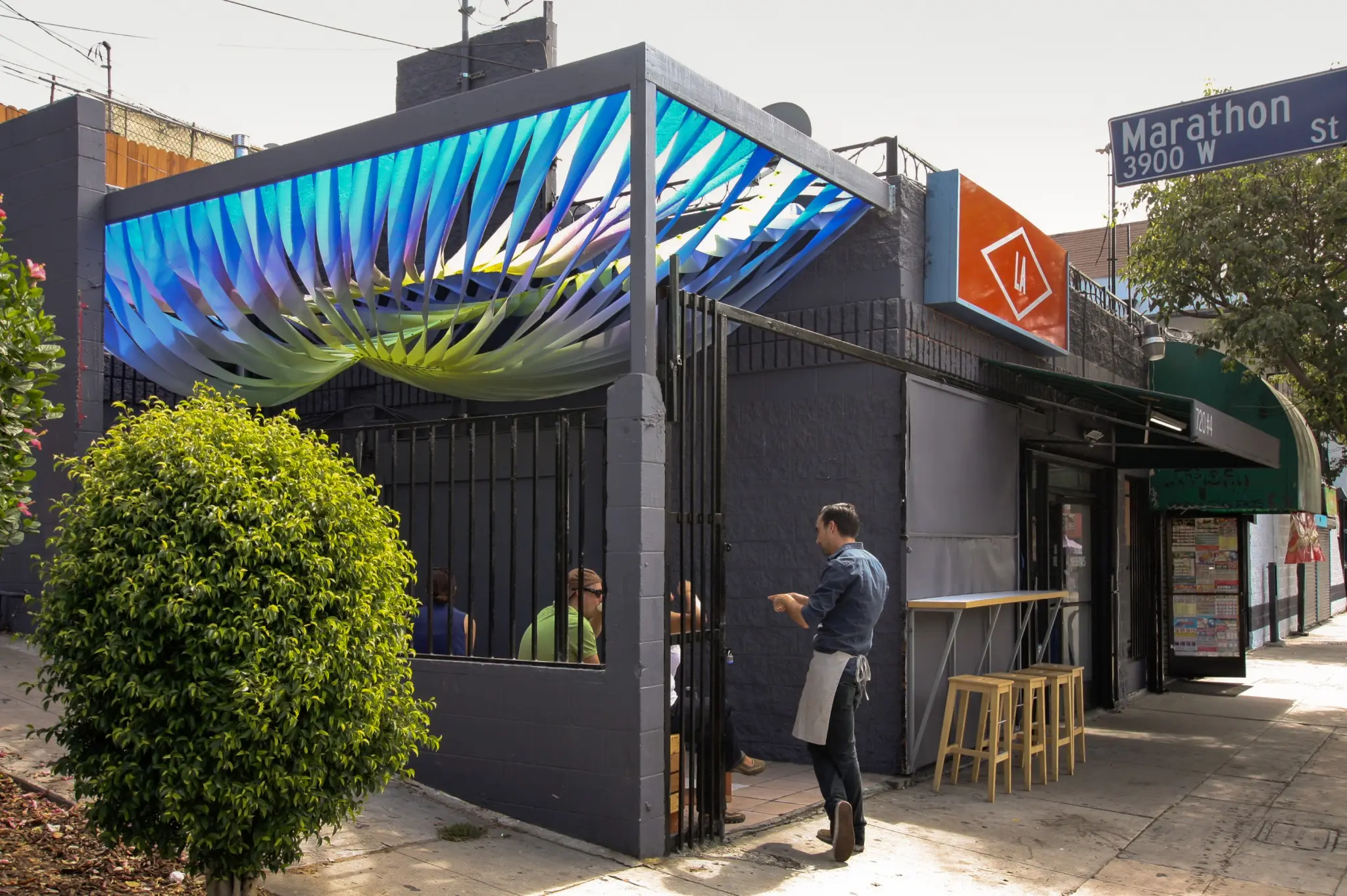

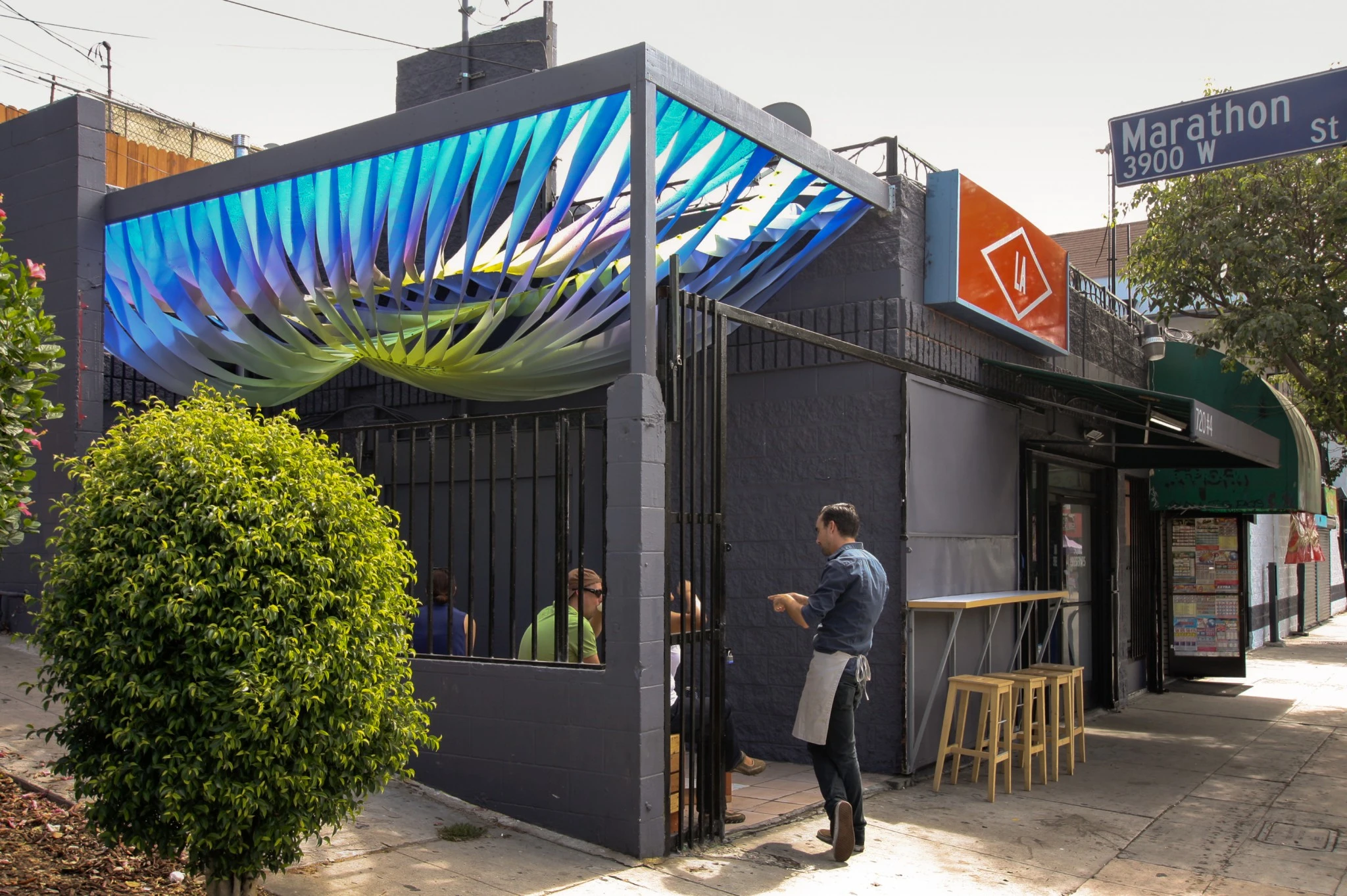

At Sqirl Bakery in Los Angeles, the strips of the canopy are hung from only their outer edge. Each one is attached to its neighbors at its inner end, forming a contingent spiral based on the collective lengths and weight of all the strips.

9-FreelandBuck-Sqirl-2048x1148

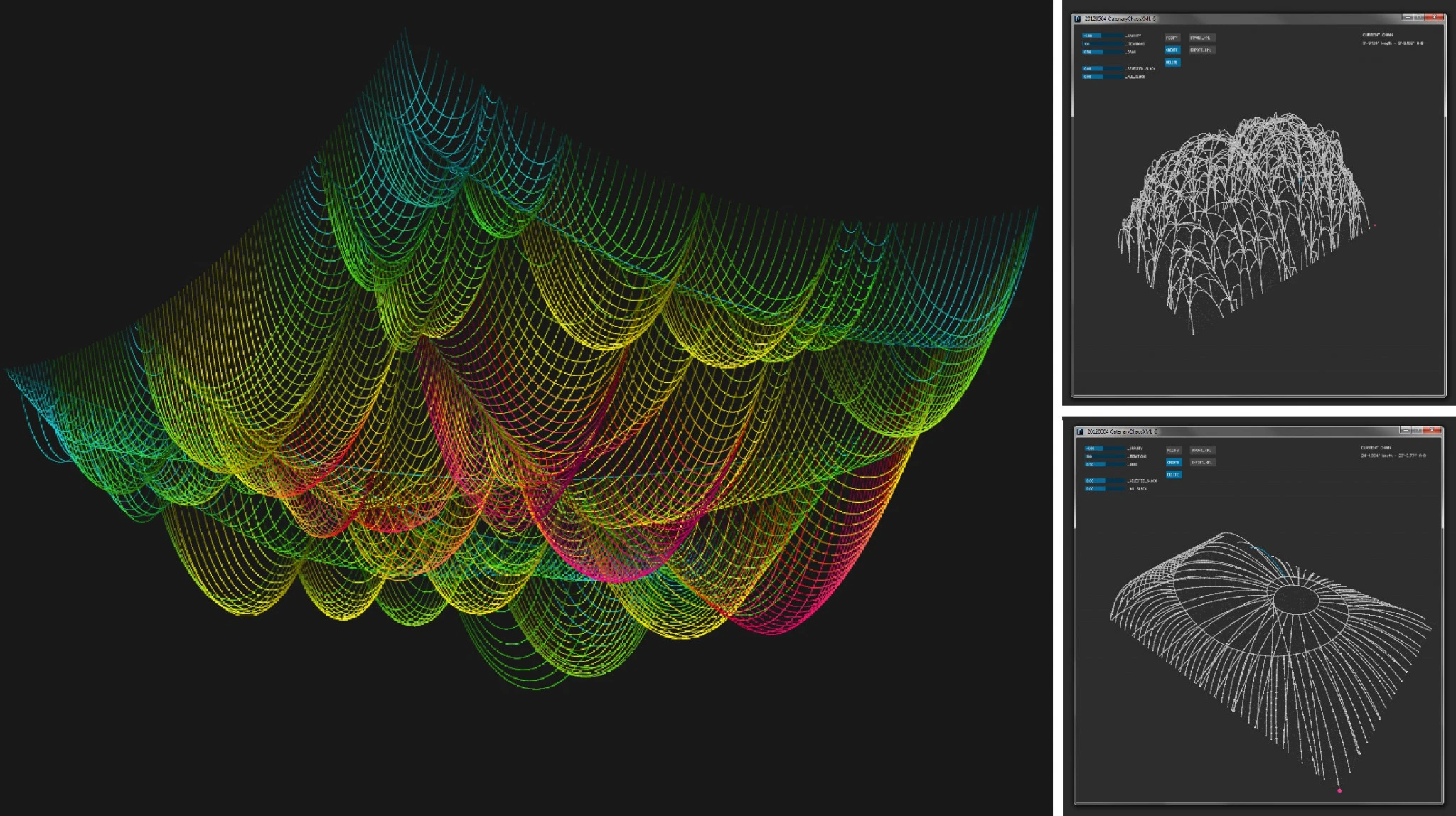

The dimensions of each of the 98 strips were adjusted using a digital physics engine to produce a layered, twisting set of implied surfaces that both shelter a small courtyard and act as a dynamic beacon for the pop-up cafe.

10-FreelandBuck-Sqirl-2048x1149

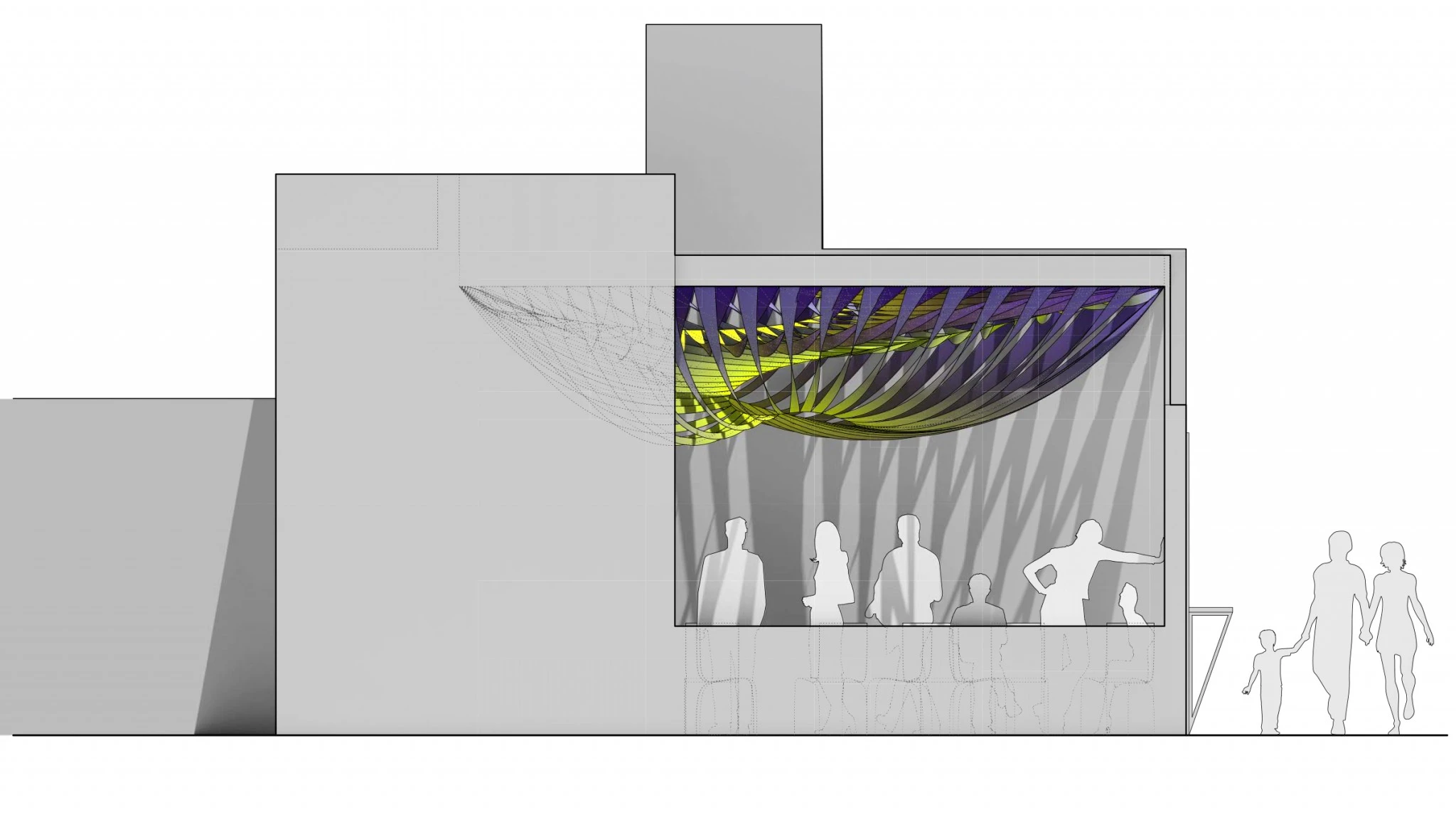

Sqirl Canopy Elevation

11-FreelandBuck-Sqirl-2048x1500

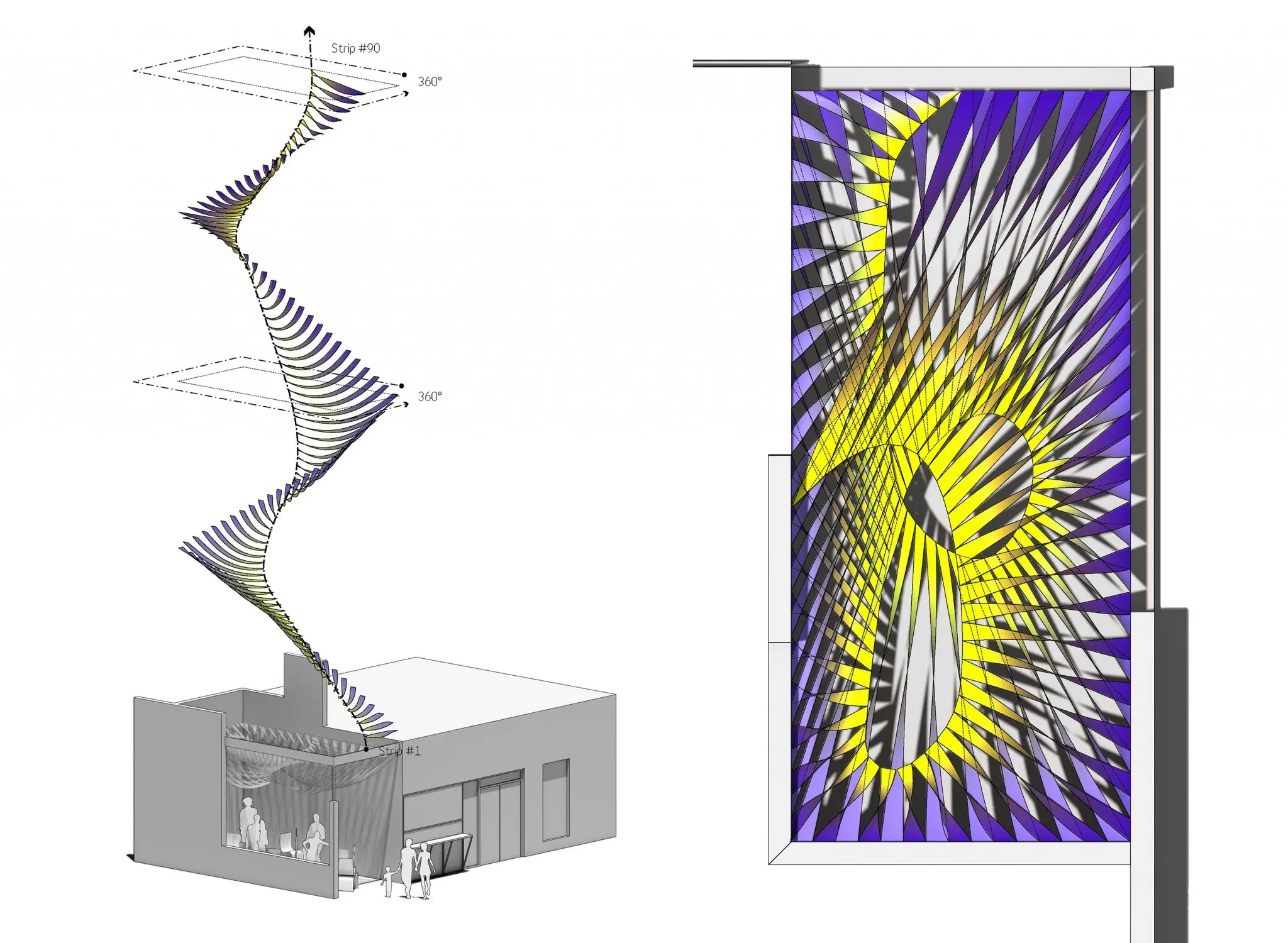

Sqirl Canopy

12-FreelandBuck-Sqirl

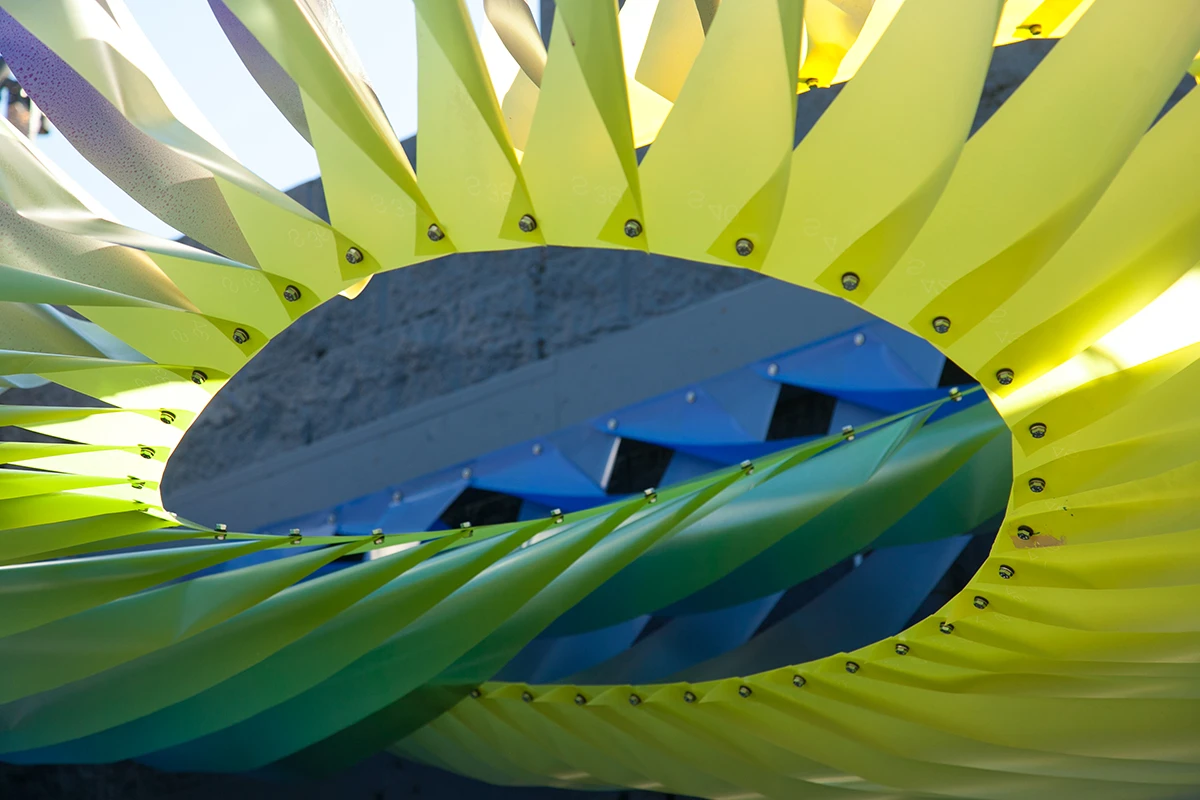

Sqirl Canopy
