Plaids

Plaid is the patterned, three-dimensional alternation of solid and void, interior and exterior volume, held in suspension by tenuous connections and hidden overlaps, from corner to corner.

1-FreelandBuck-Plaid-2048x309

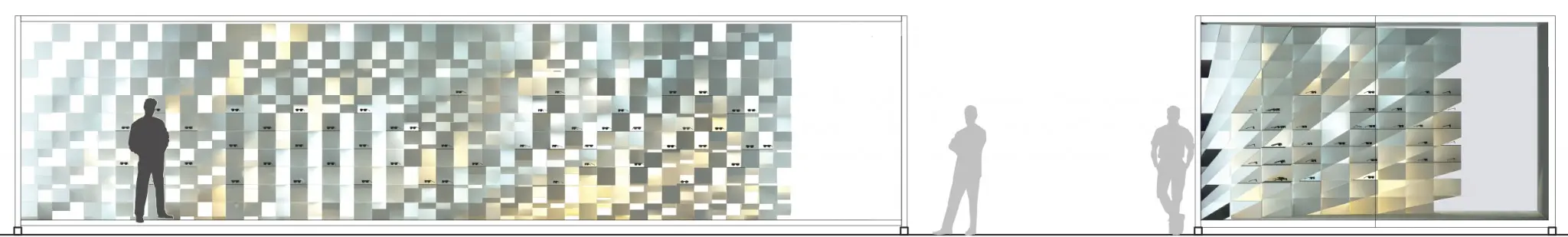

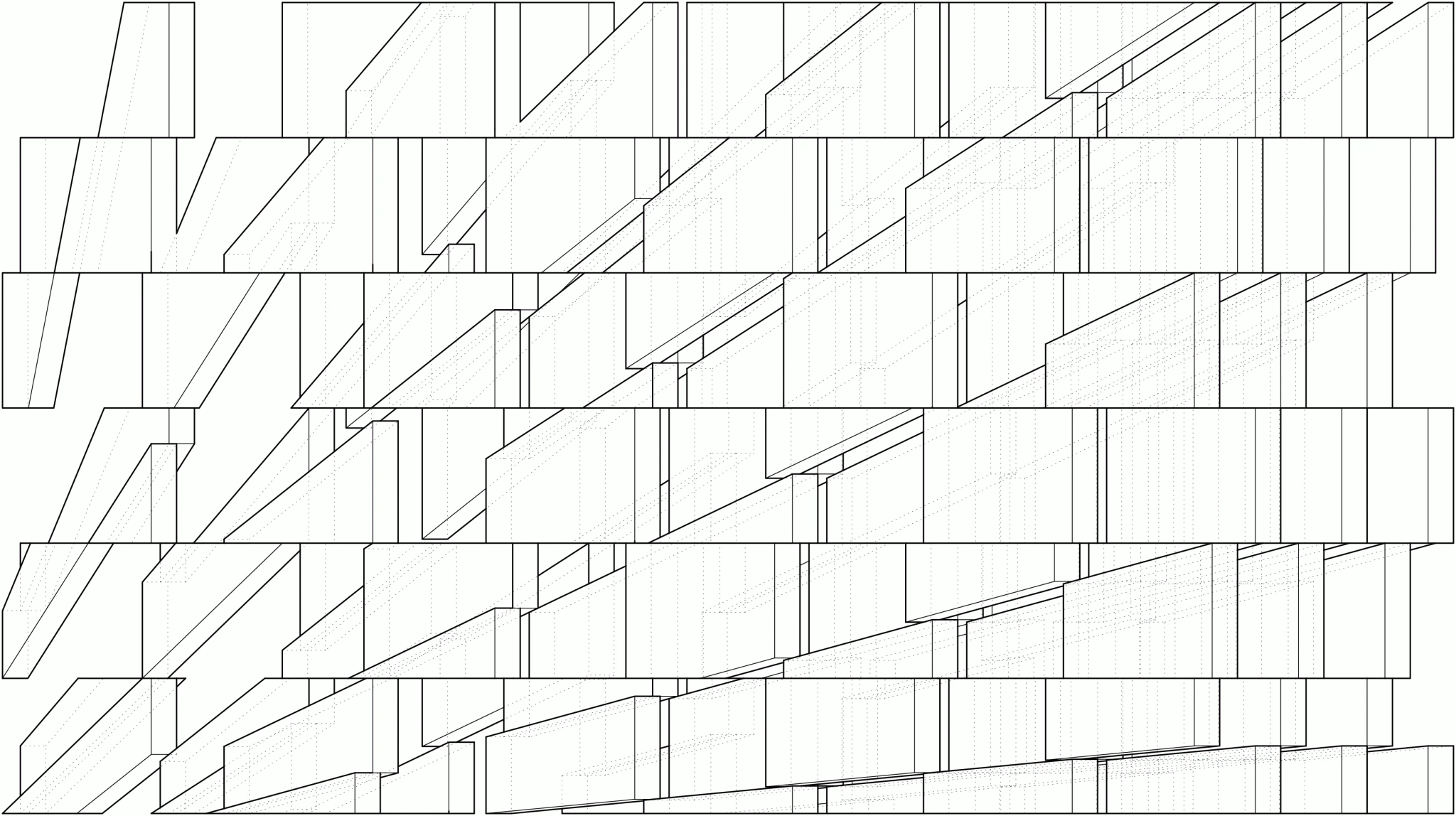

Boffo Linda Farrow Popup Store: Elevation, Sections

Farrow-C

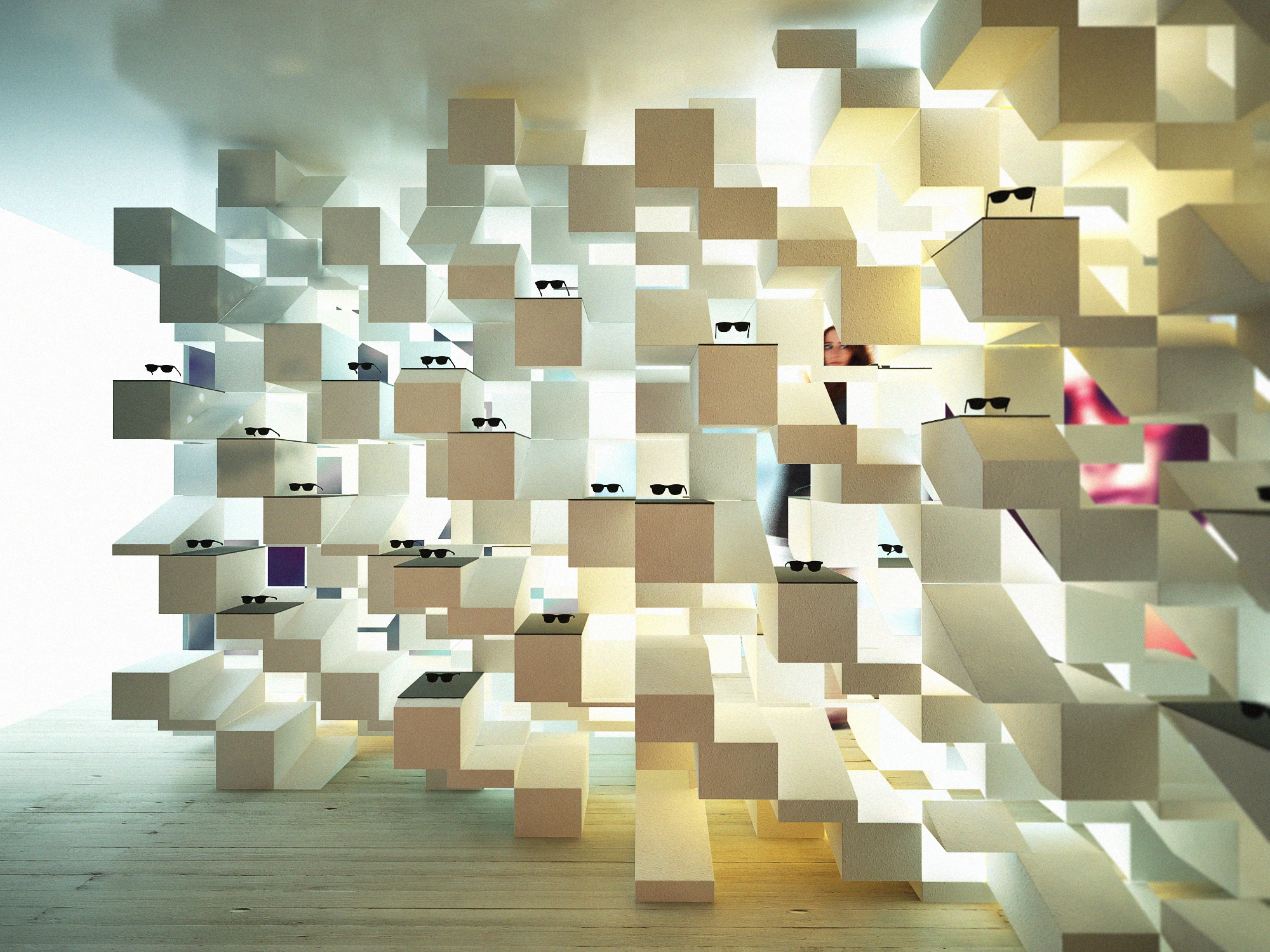

Boffo Linda Farrow Popup Store

A short history of plaid architecture: Rudolf Wittkower first elucidated the tartan grid of Paladio’s villas, marked by spatial alternation between poche and volume, enclosed service spaces and more open living rooms. Colin Rowe extended that analysis in his essay, “The Mathematics of the Ideal Villa” and Peter Eisenman found related rhythms in the Maison Dom-ino. More recently, three-dimensional plaids often resulted from architectural experimentation with minimal surfaces that, though continuous, maximize surface area and adjacency between two distinct volumes.

3-FreelandBuck-Plaid-2048x1185

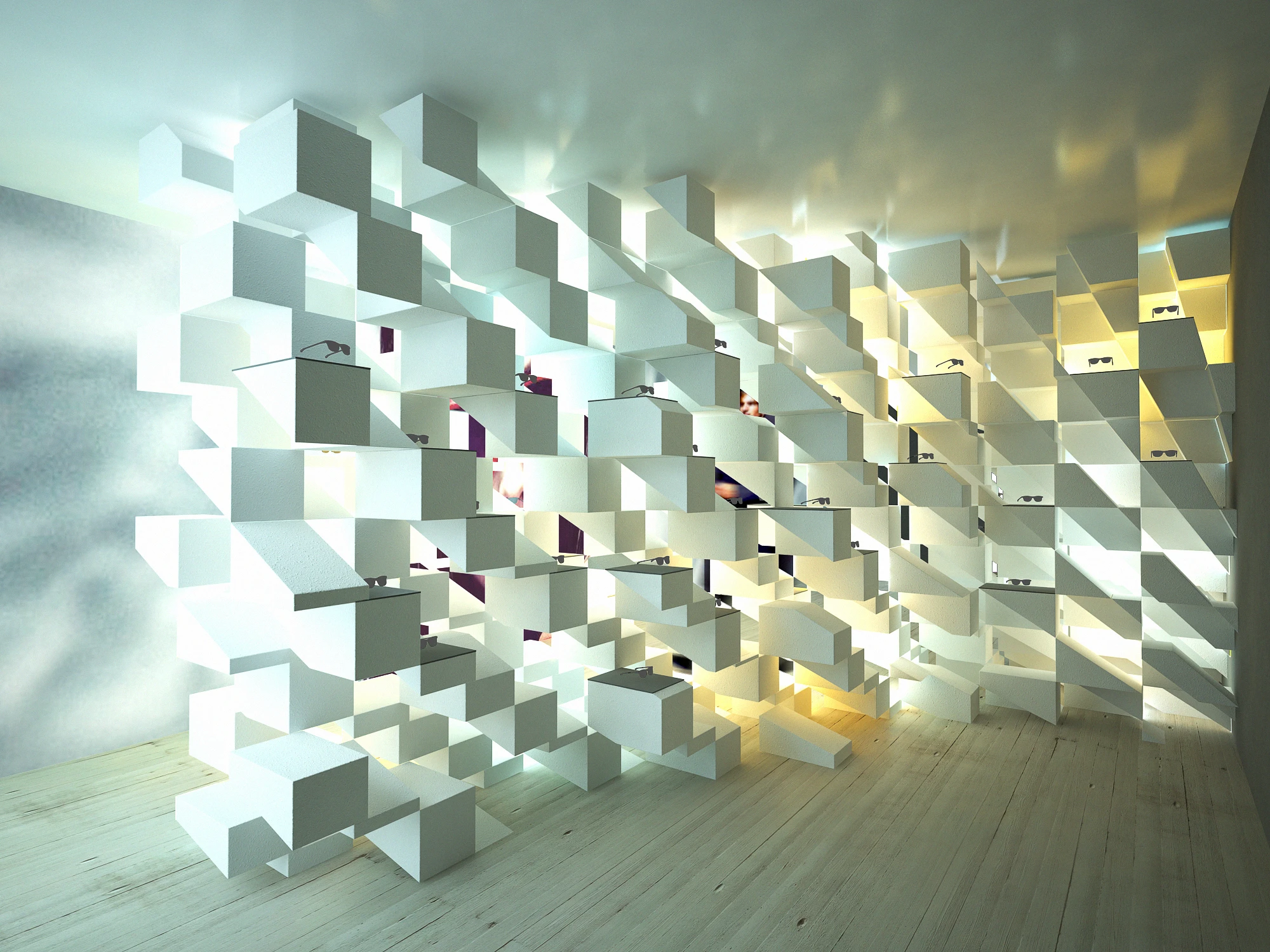

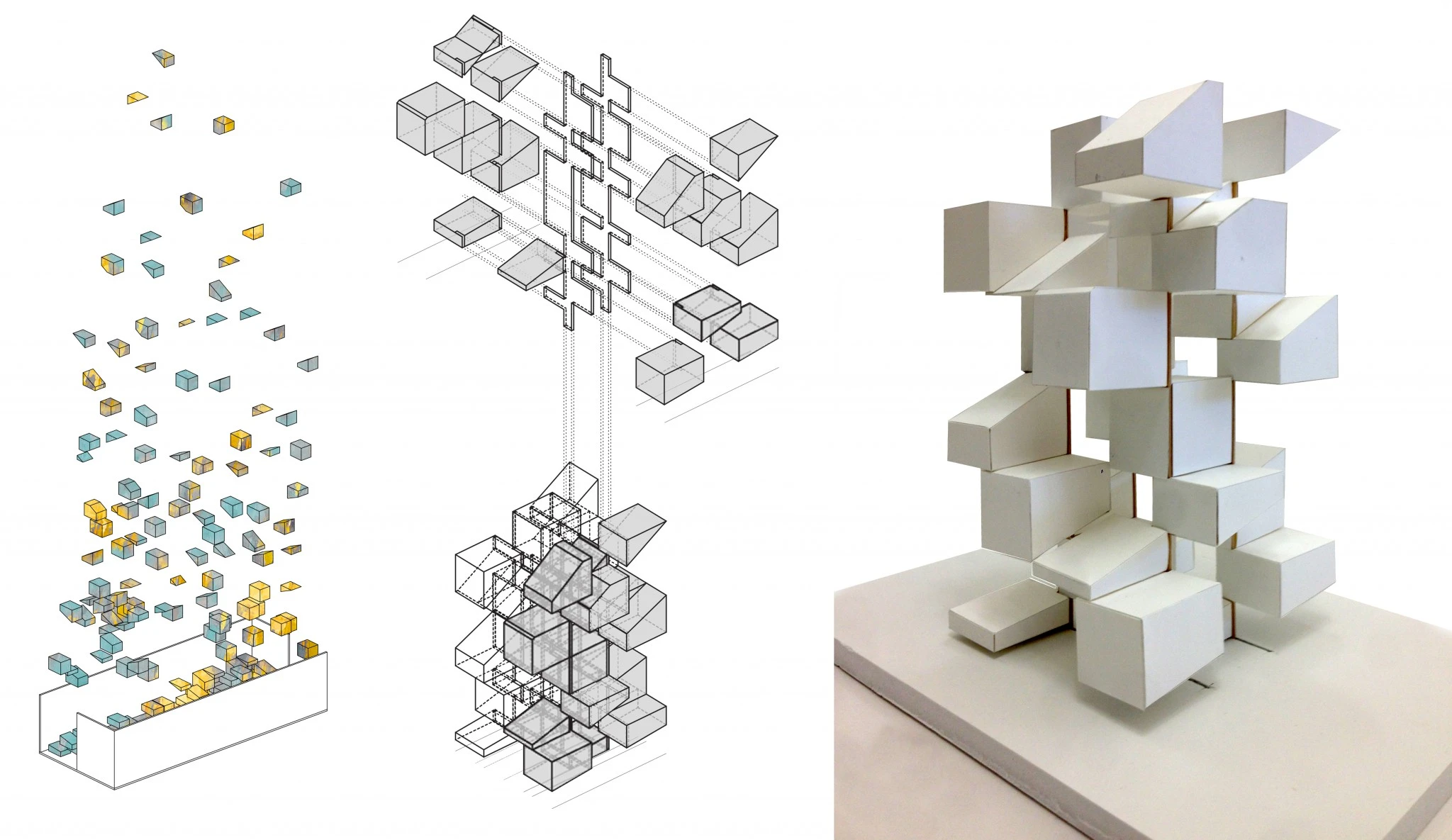

Boffo Linda Farrow Popup Store

3b-FreelandBuck-Plaid

Whether they are defined by curved surfaces or planar walls and floors, plaid or checkerboard volumes alternately flip from one site to the other, from inside to out. A plaid is semi-solid: it retains its shape, but still flows. Despite its crisp articulation, a plaid implies motion and dynamism; its component volumes appear ready to slip into another configuration or flip states, like digital ones and zeros, solid-to-void, void-to-solid.

MOCA-web5-6-2048x1255

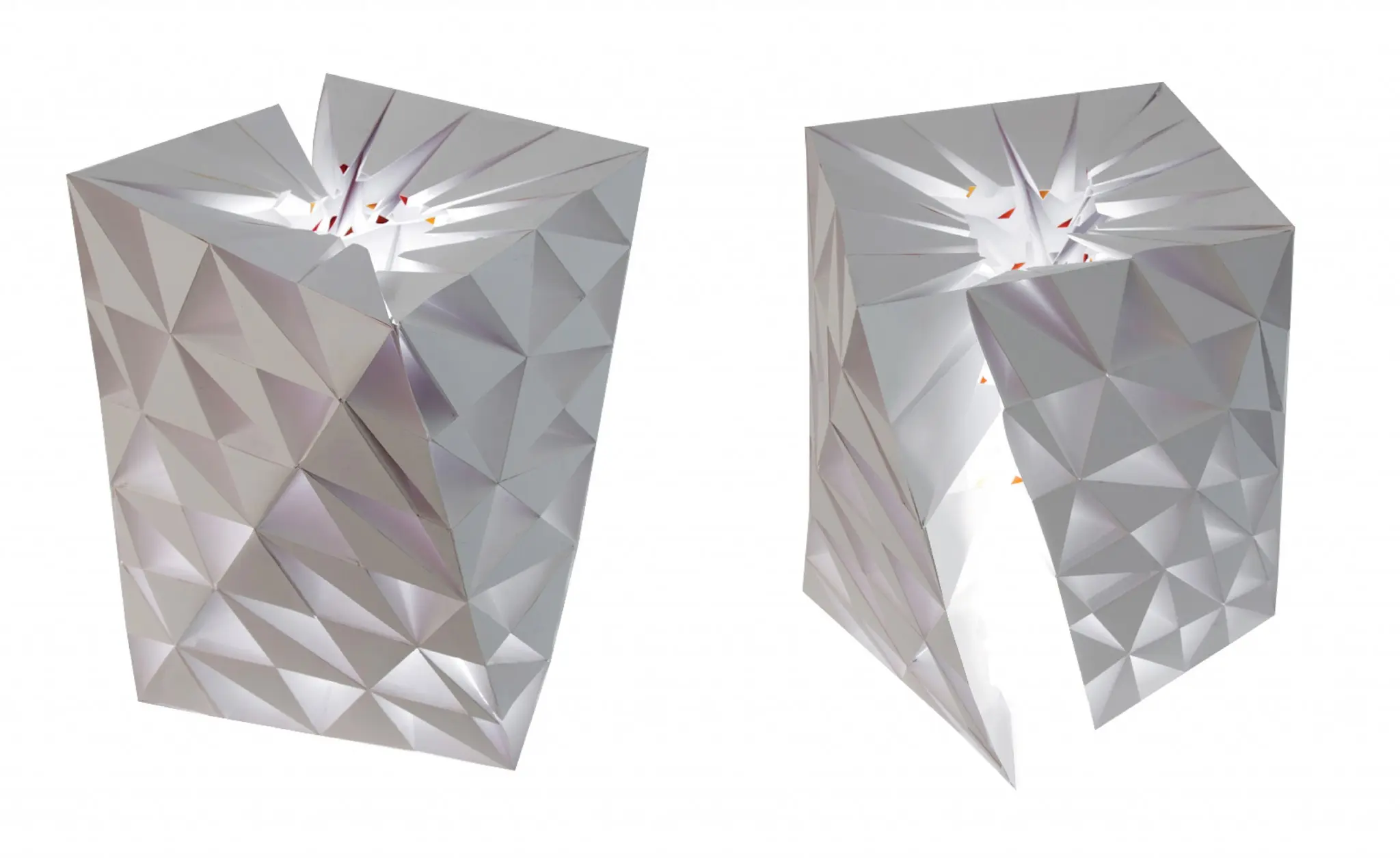

MOCA Listening Room

4-FreelandBuck-Plaid-2048x729

Plaids simultaneously capture both interior and exterior; they are anti-envelope, anti-surface. As architecture has contracted into the thin membrane of the facade, plaid may be a way to expand the facade back into building. Plaids have no threshold. They integrate dichotomous conditions, not with a material property (transparency) but by maximizing spatial adjacency.

Composite-Model-2048x1265

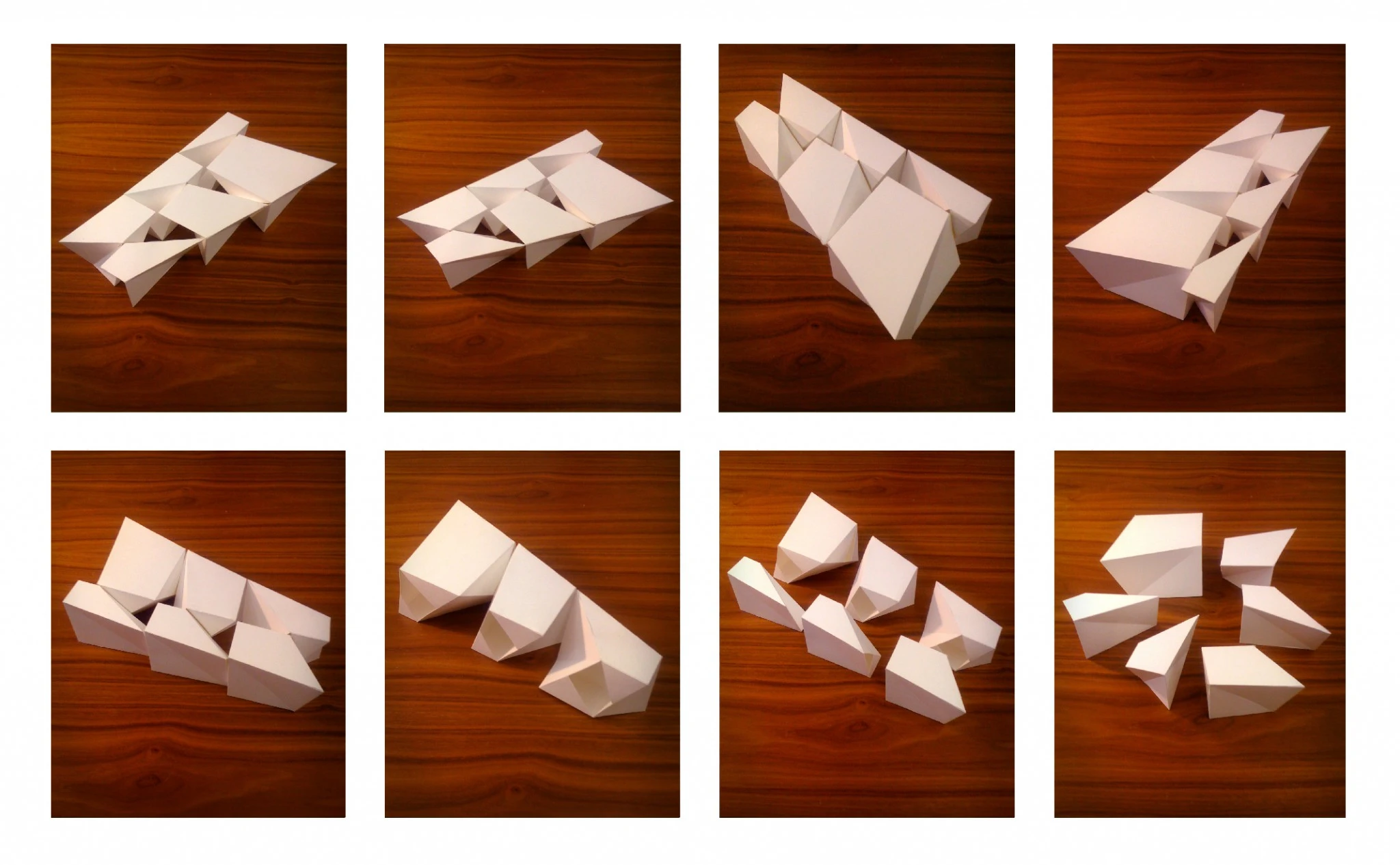

Maine Woodlot House

Istanbul-Assemblage without-text

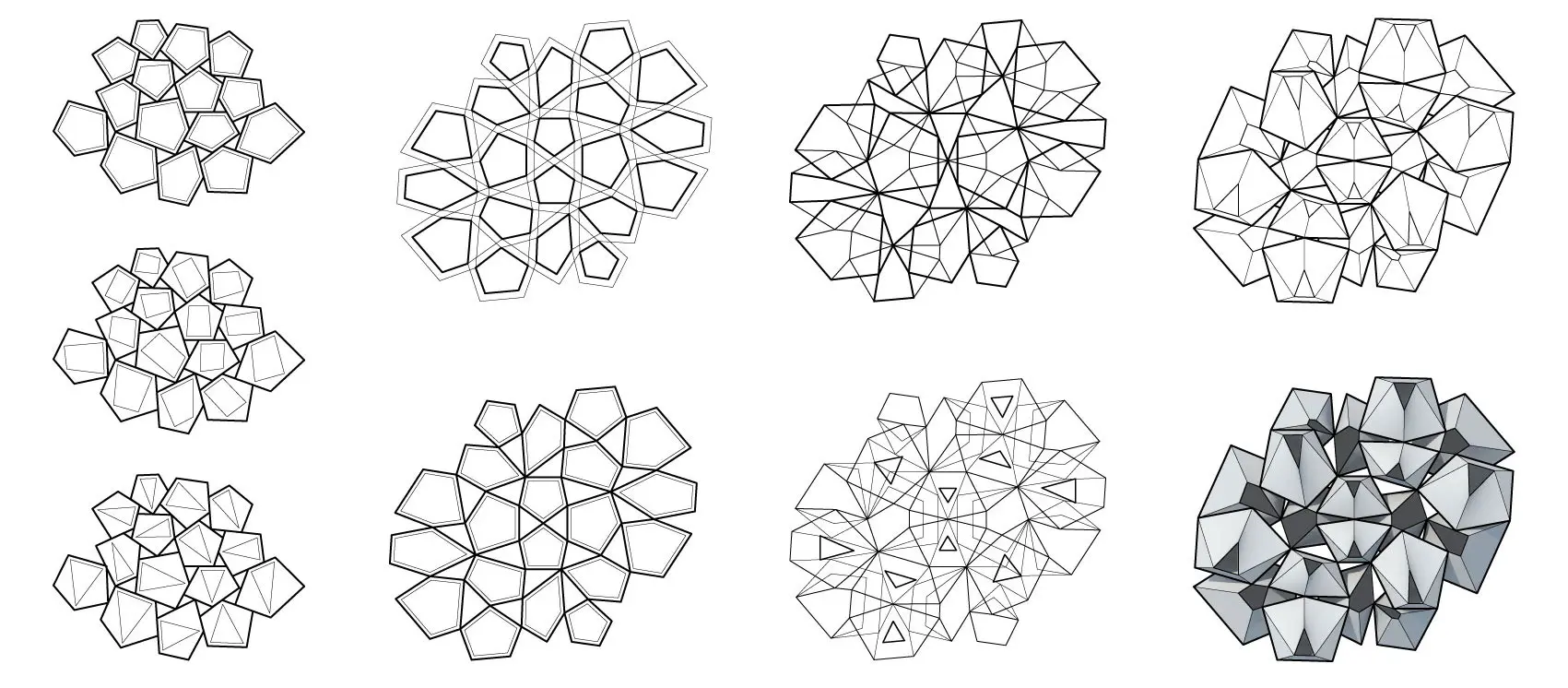

Istanbul Disaster Center: Aggregation Patterns

Istanbul-Diagrams 02

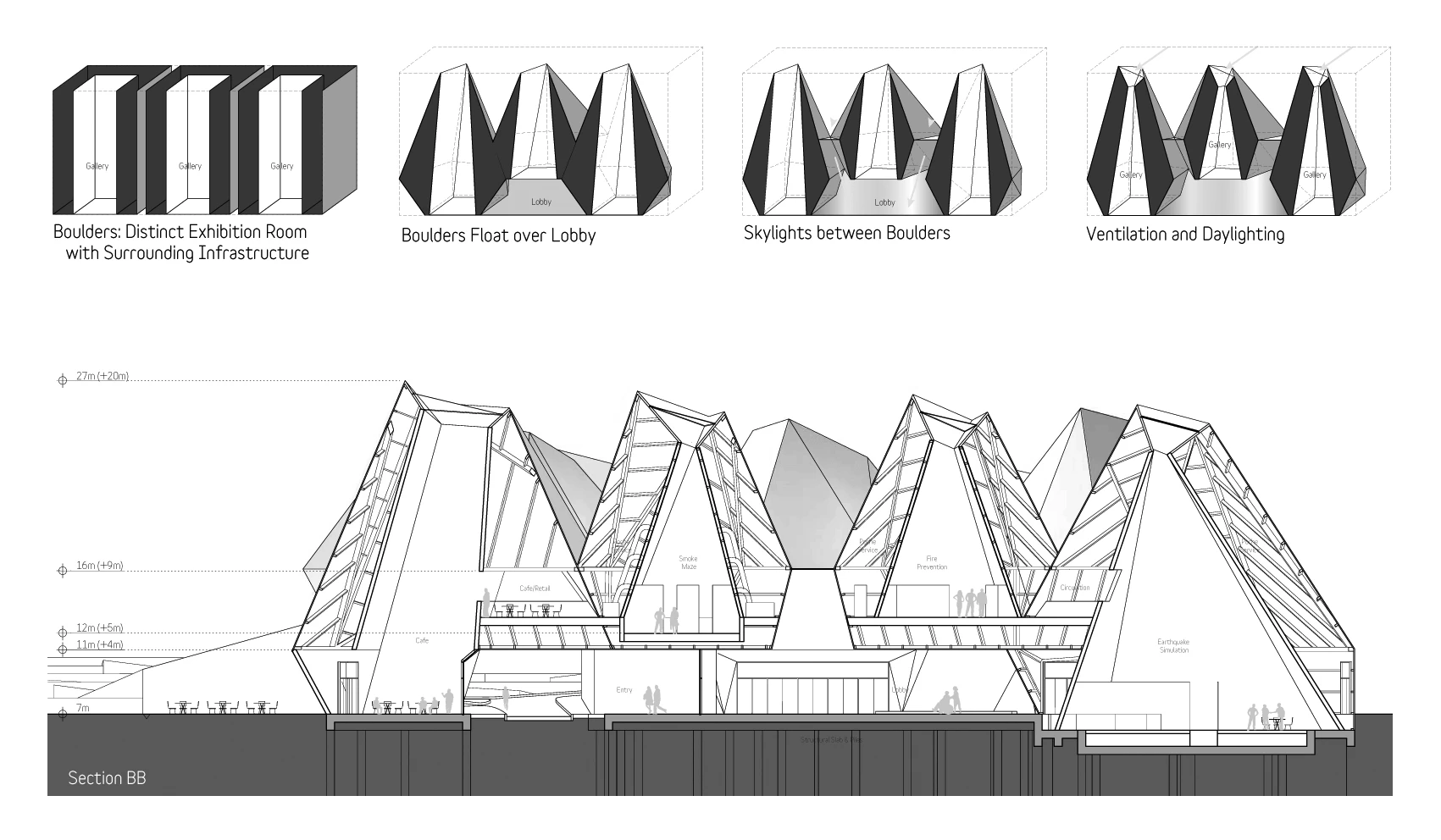

Istanbul Disaster Center: Sections

9-FreelandBuck-Plaid

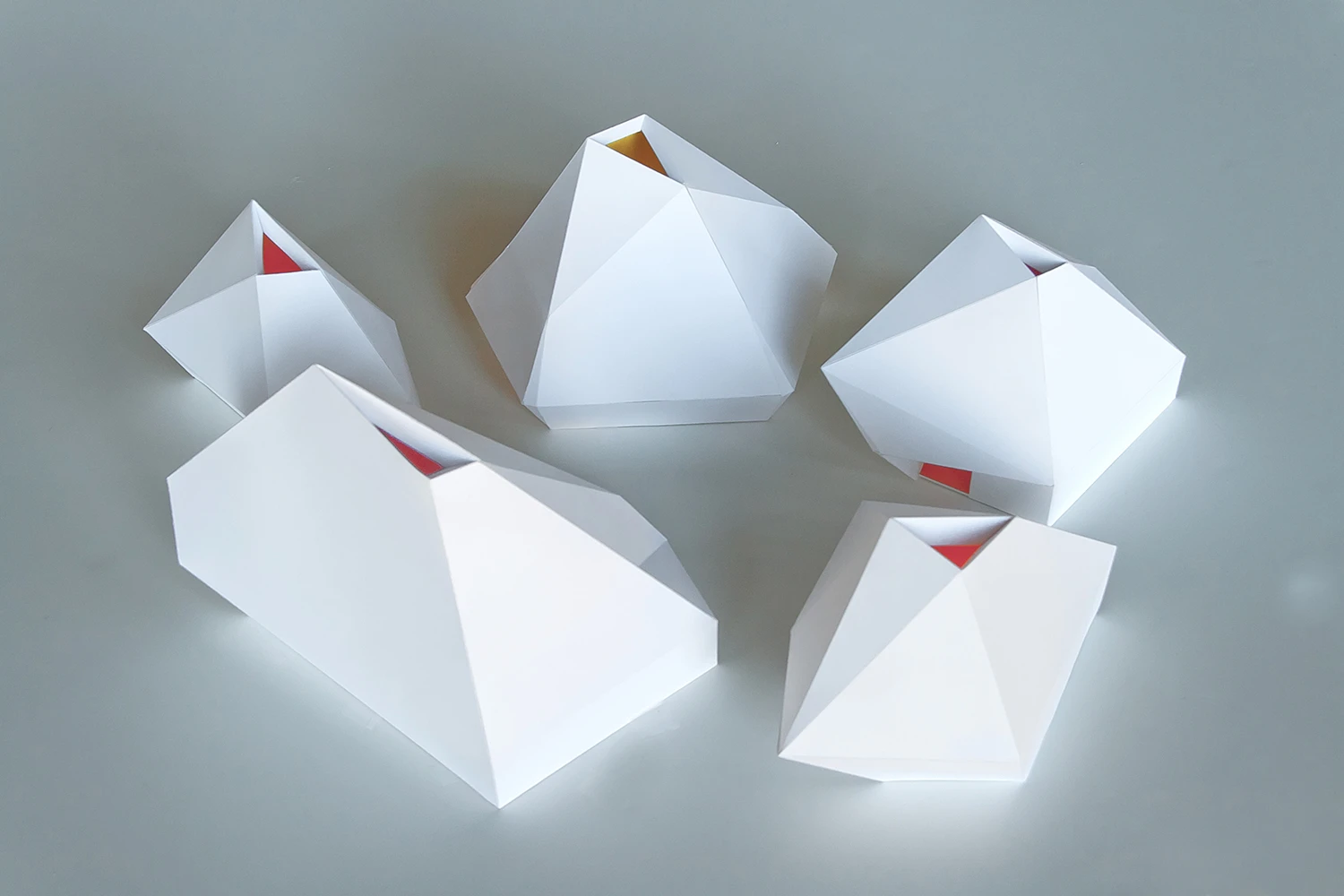

Istanbul Disaster Center: Boulders

Plaids articulate each volume as distinct and autonomous, while also situating it within a larger organization or structure.

10-FreelandBuck-Plaid

The plaid is the formal and spatial context that ties each individual element, room, or building to its neighbors. In experiential terms, it produces anticipation, displacing attention from the space the occupant is currently in to the next. It creates larger spaces with uncertain extents, porous boundaries that lead you around the corner or reveal a peak into the stack.

11-FreelandBuck-Plaid
