Disaster Center

Istanbul, Turkey, 2011

Istanbul-Diagrams 02-resize-2048x342

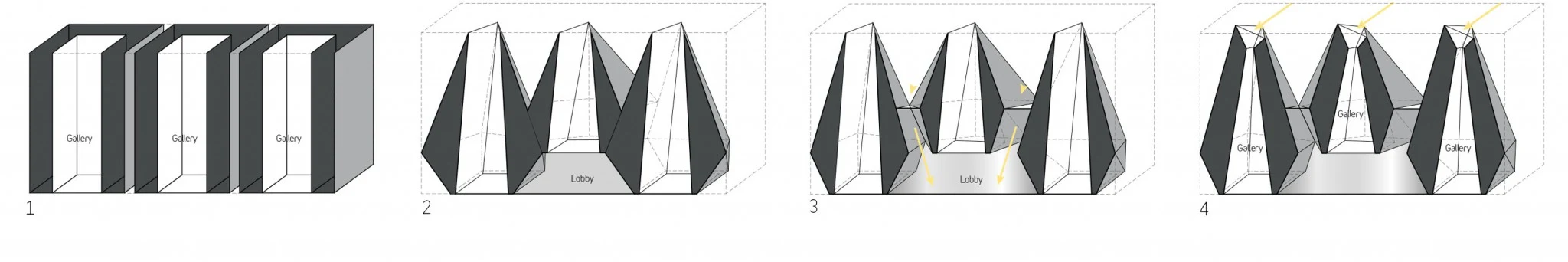

Left to Right: Boulders: Distinct Exhibition Room with Surrounding Infrastructure; Boulders Float over Lobby; Skylights between Boulders; Ventilation and Daylighting

The Istanbul Disaster Prevention and Information Center holds a series of disaster simulation galleries, from earthquakes to rainstorms to fires. The building is designed as a single structure that expresses the multiplicitous atmospheres and climates it contains. Unlike a science museum, where large open halls are sufficient to contain furniture-scale exhibits, the disaster center is a continuous network of distinct spaces. Each exhibit relies on a unique atmosphere and climate supported by its own structural, mechanical and electrical infrastructure.

Composite-2048x1192

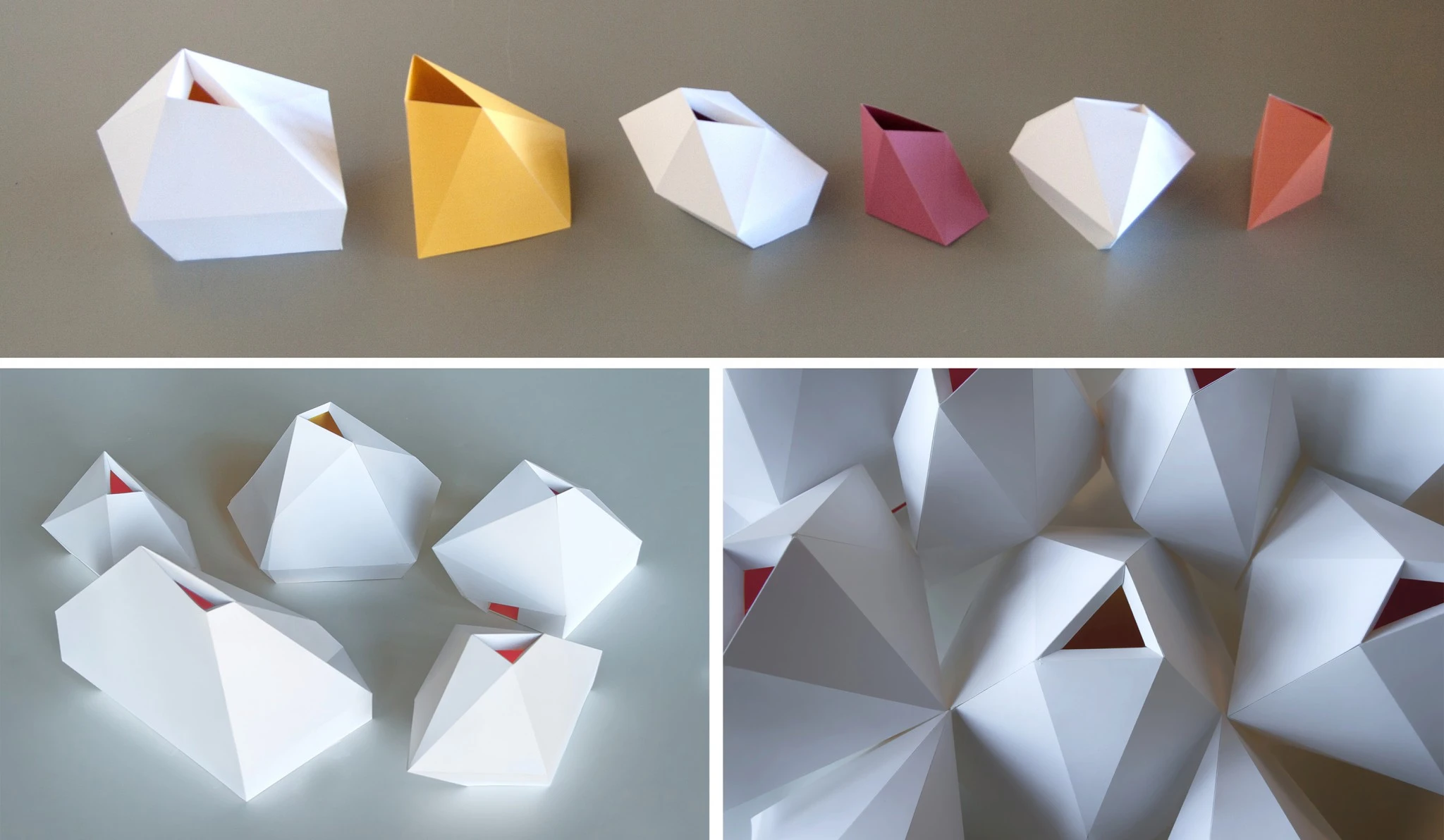

The exhibit rooms take the form of ‘boulders’ with a single central space at the core surrounded by a ring of infrastructural poche and circulation space.

Istanbul-Assemblage without-text

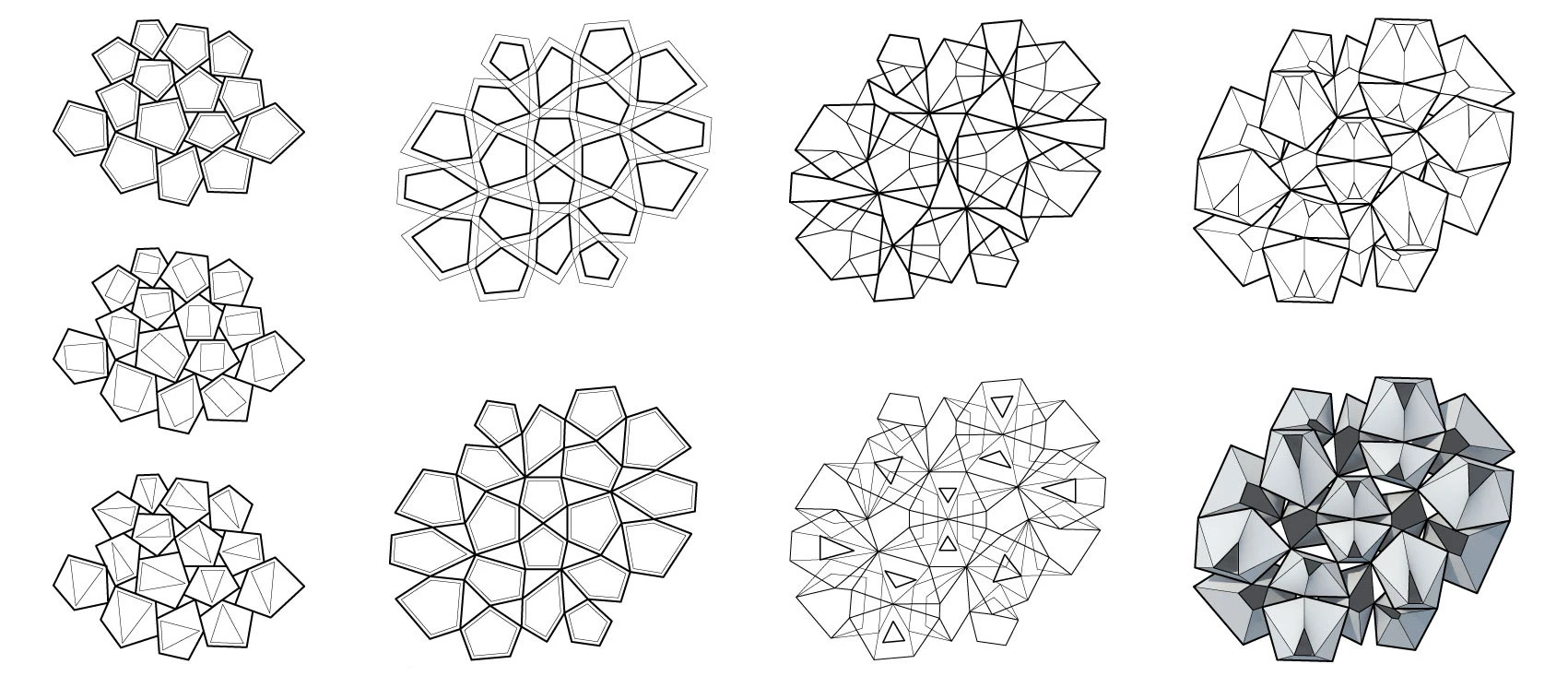

The core of each boulder is a zone of intense atmosphere produced through dramatic effects of lighting, climate and color which leak out to infuse the more neutral lobby and reception spaces around them.

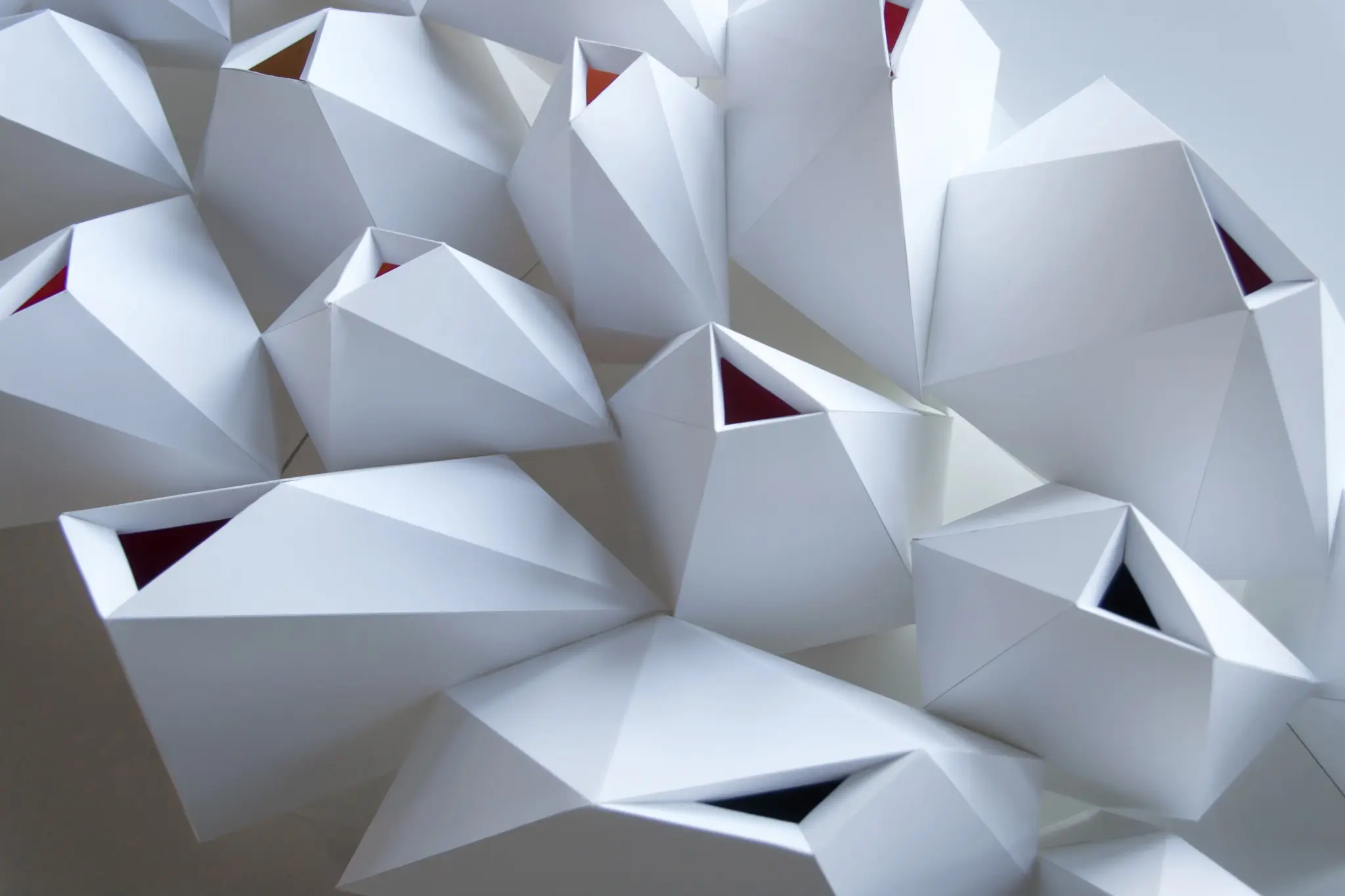

Model1-2048x1365

Section-BB-2048x876

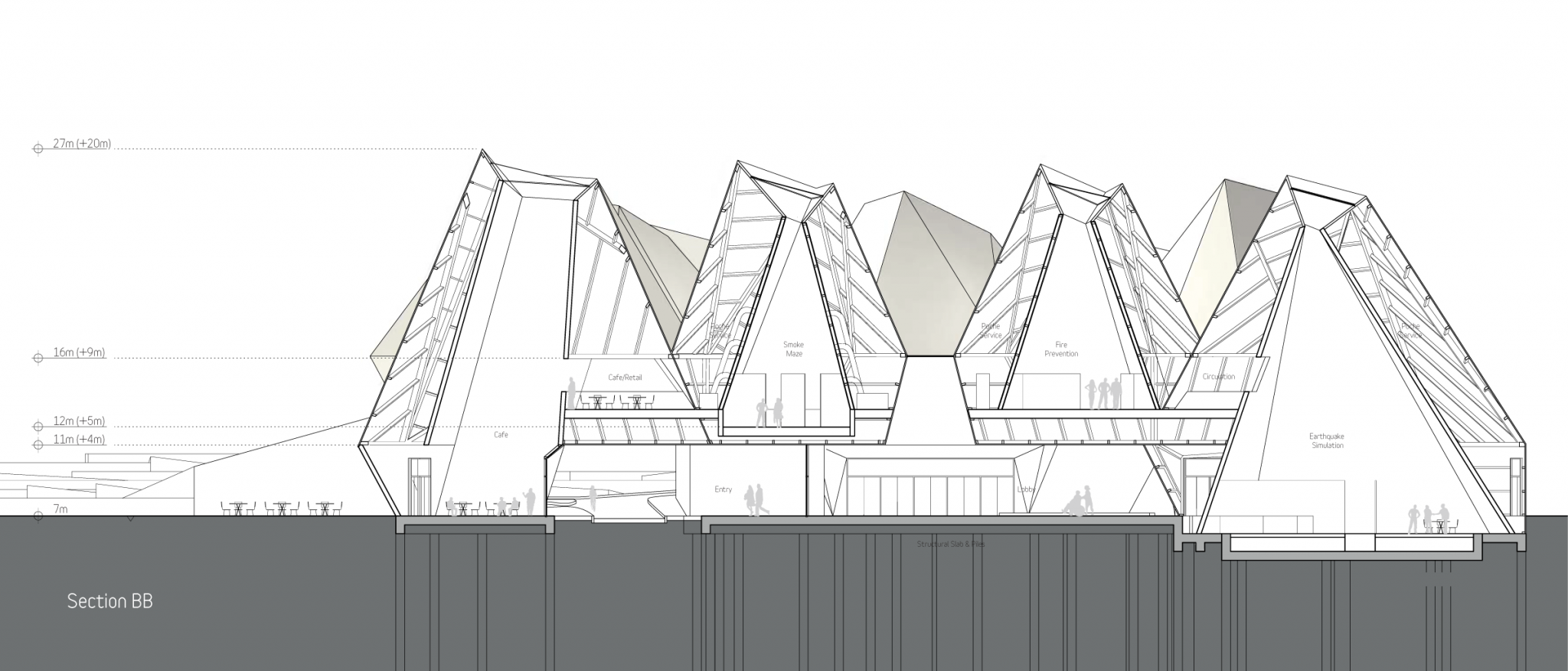

Section

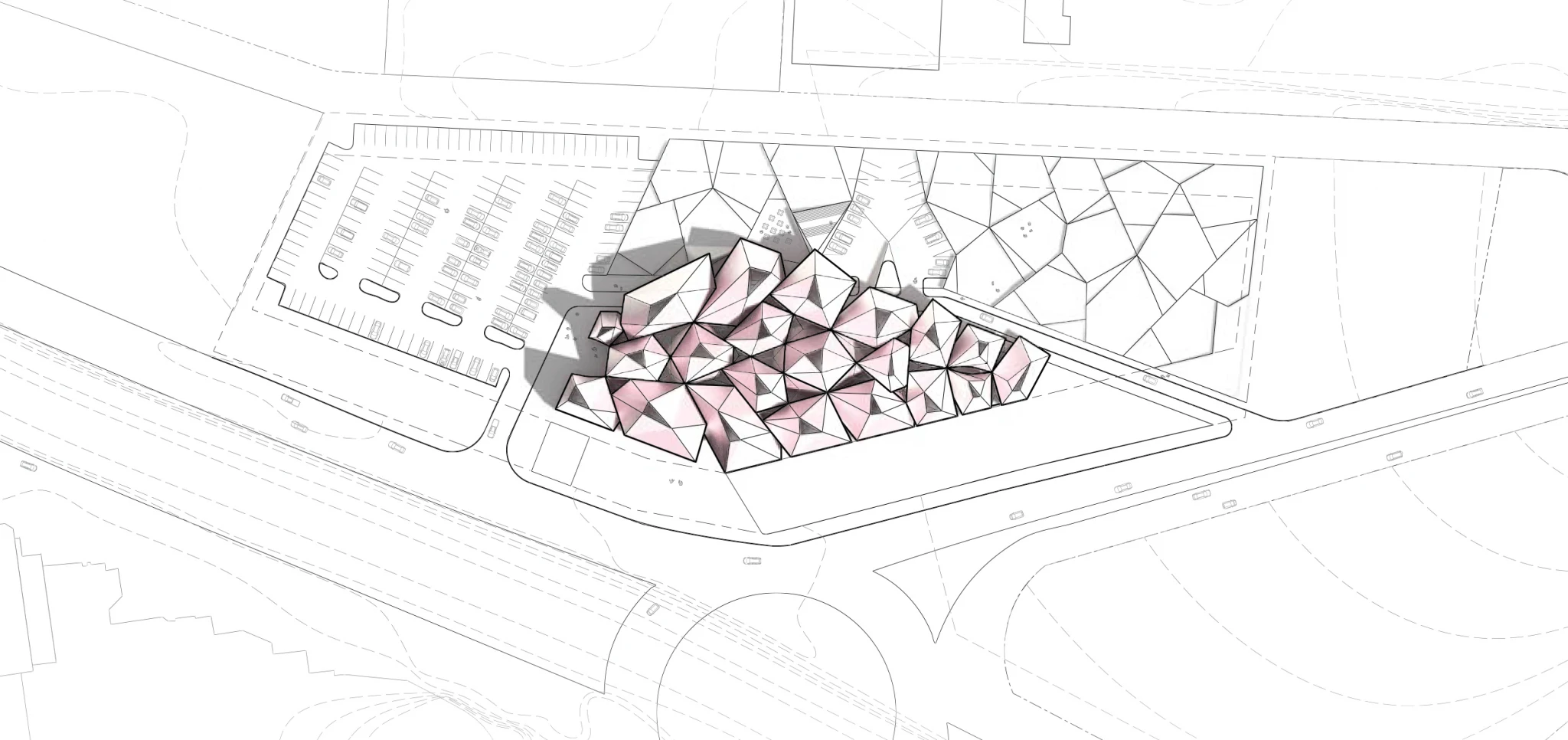

Site-Plan-2048x966

Site Plan

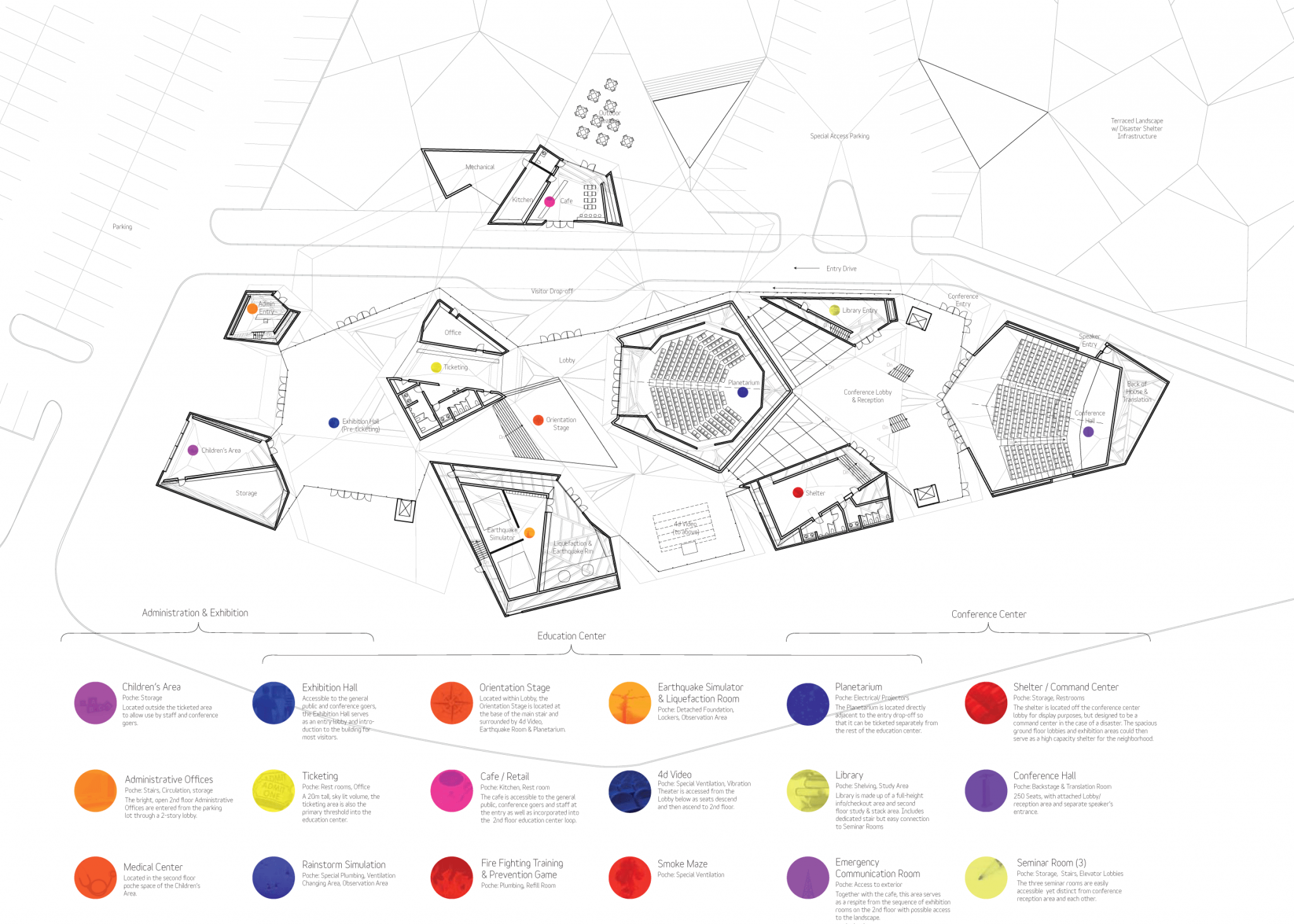

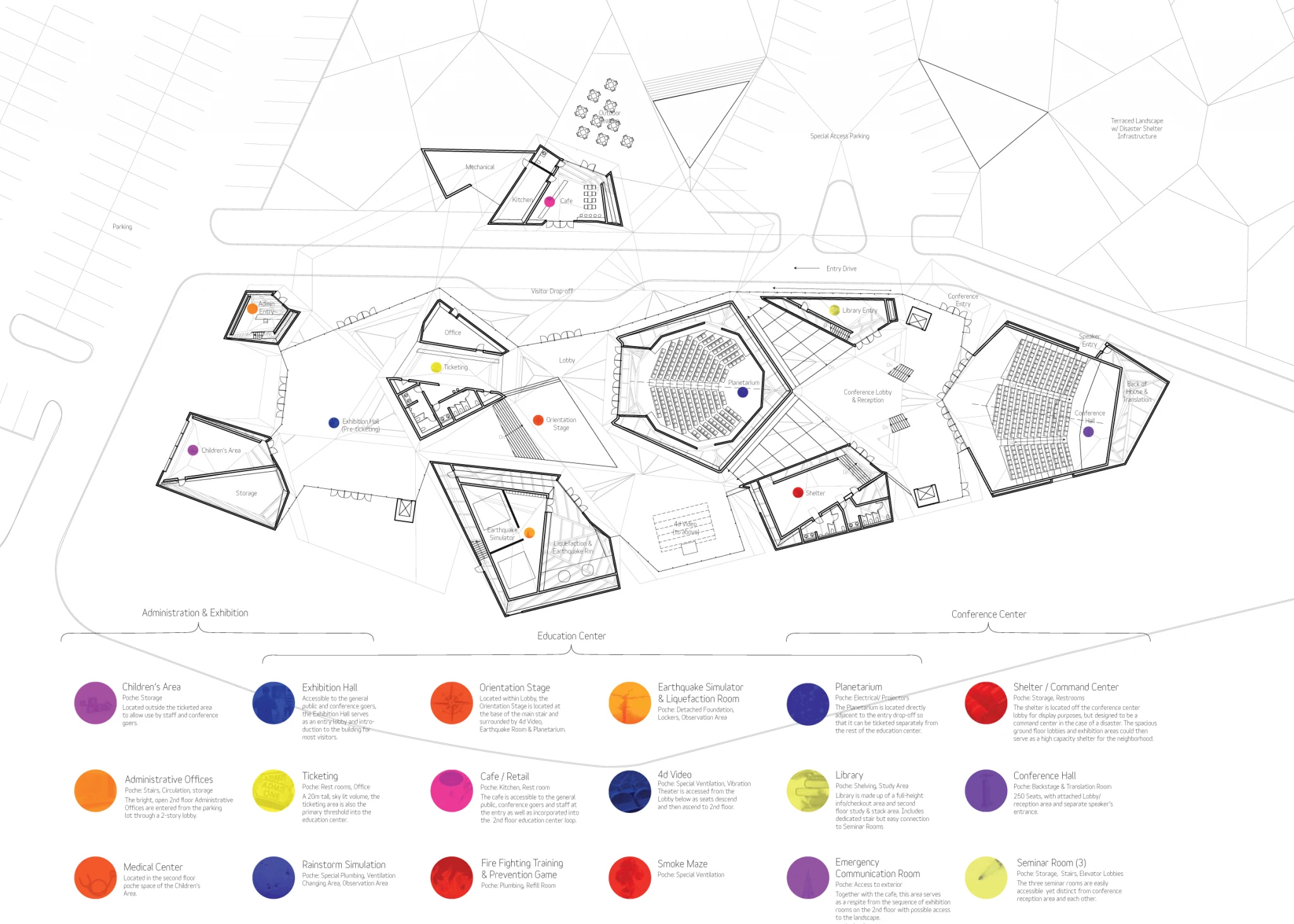

Ground-Floor-Plan-2048x1463

Ground Floor Plan with Disaster Simulation Chambers

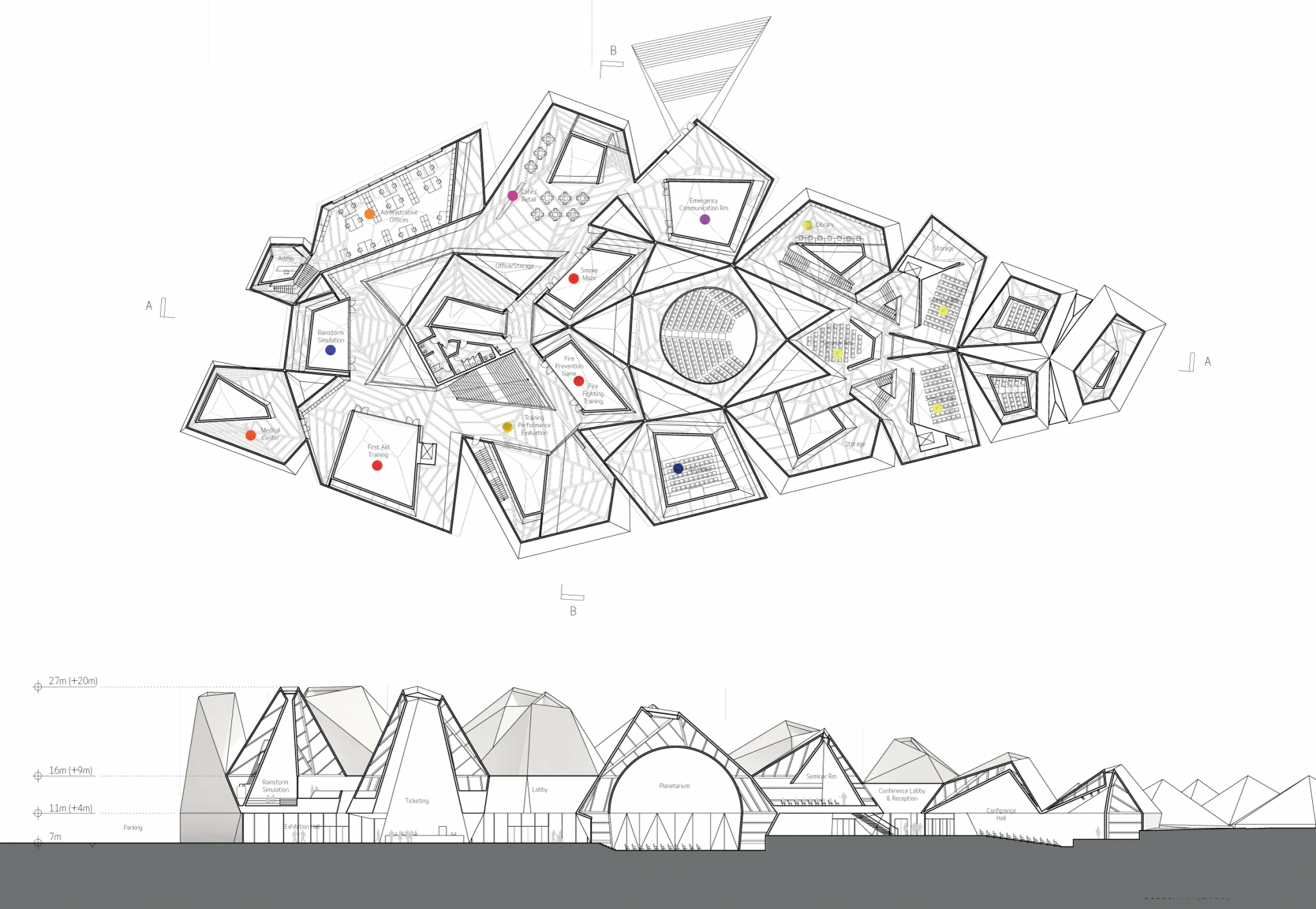

Second-Floor-Plan-2048x1415

Second Floorplan and Section

Render-Exterior-Parking2-2048x1280

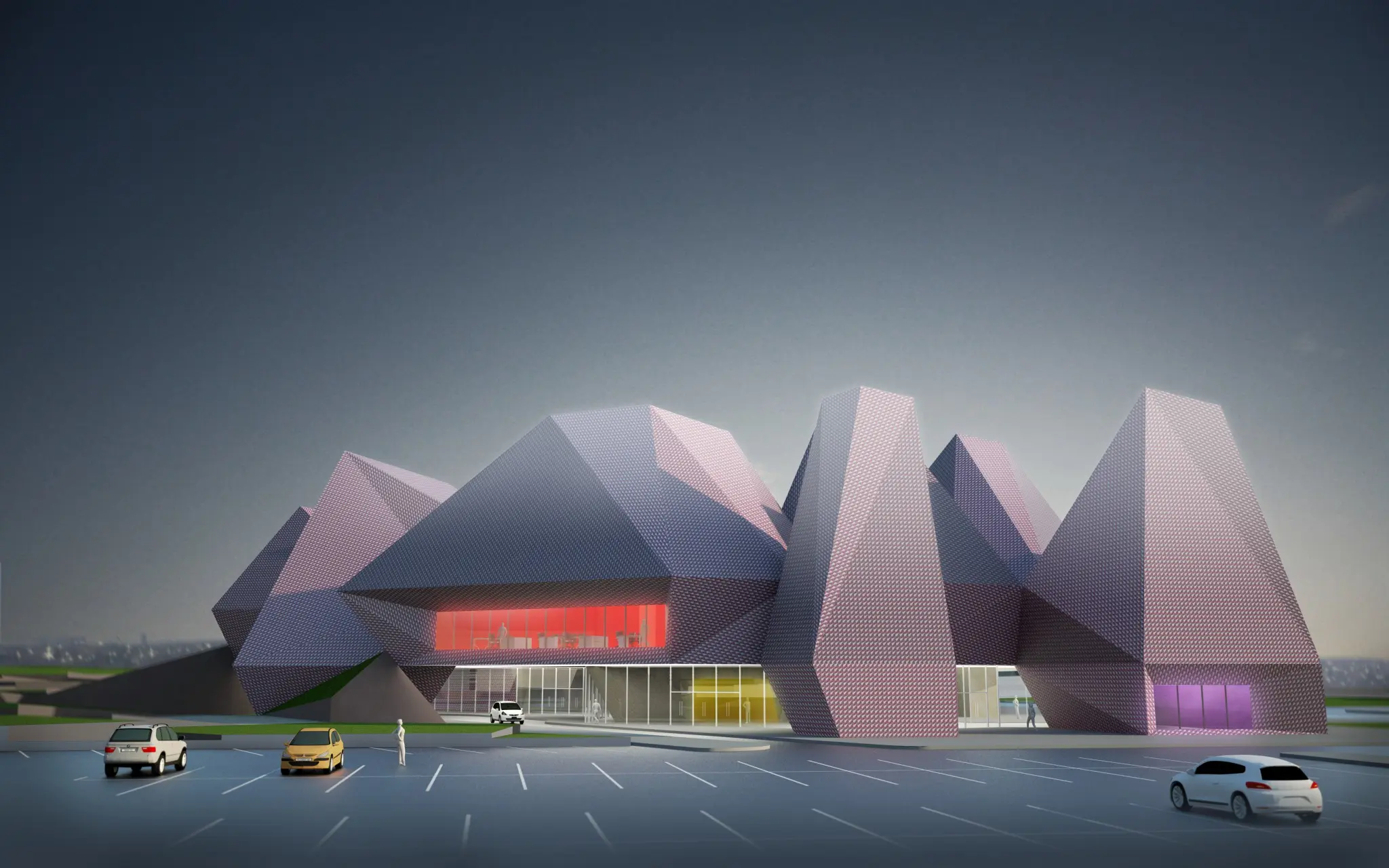

A series of interdependent relationships between ‘boulders’ help to synthesize the varied program into a unified building. While the building may evoke the instability of disaster, its hybrid concrete and steel structure transfers load from one boulder to the next, making it extremely stable – going far beyond current code to allow it to function as regional shelter and command center in the event of an actual disaster. It’s large ground-level open spaces and terraced landscape are designed to shelter upwards of 1000 people.

Render-Interior-Conference2-2048x1280

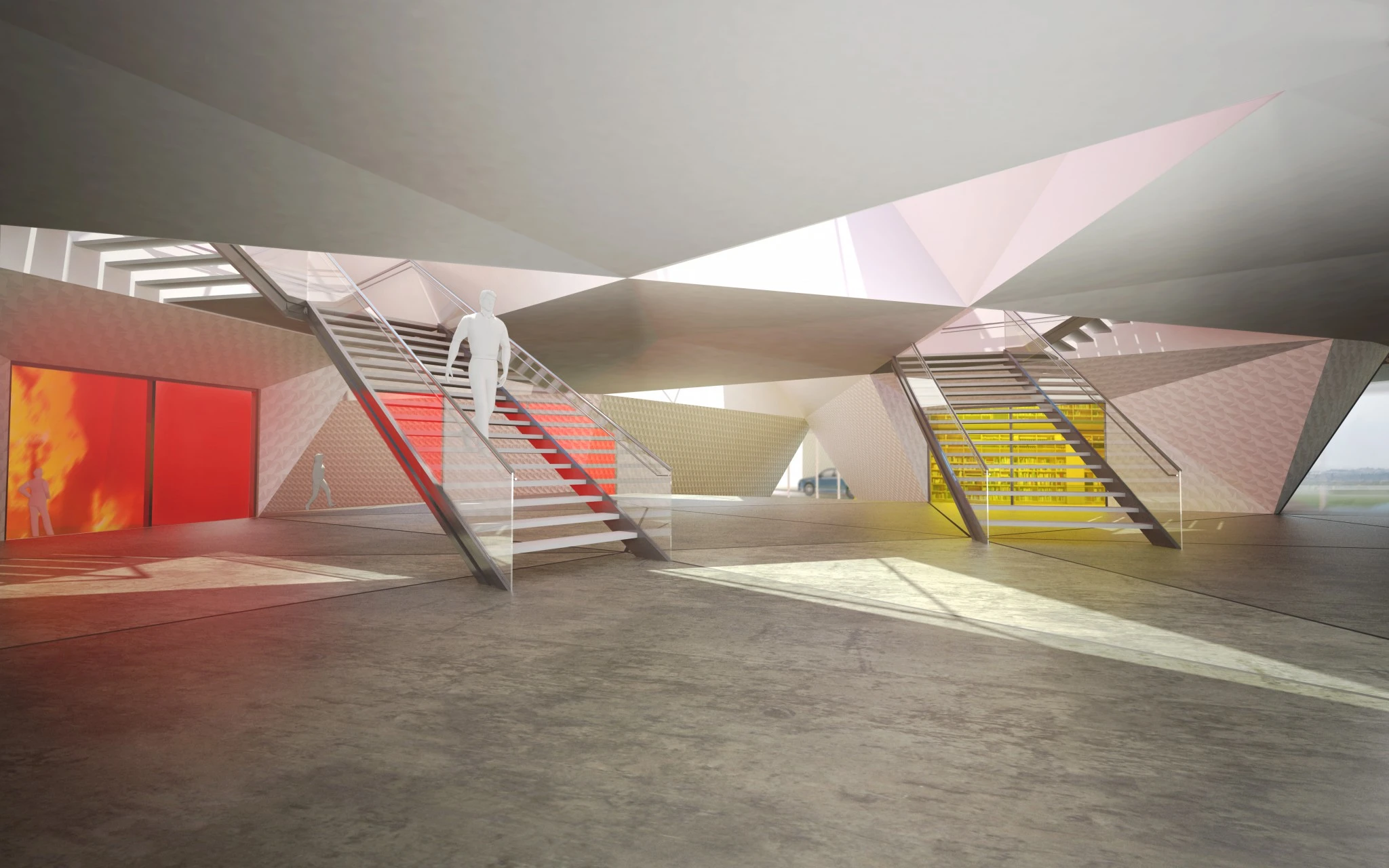

The modulated continuity of the building’s space allows for multifunctional programming during special events and multilevel passive heating and cooling, while also maintaining subtle thresholds between the education center, conference center, and administrative offices.

Render-Interior-Upstairs-Museum2-2048x1280

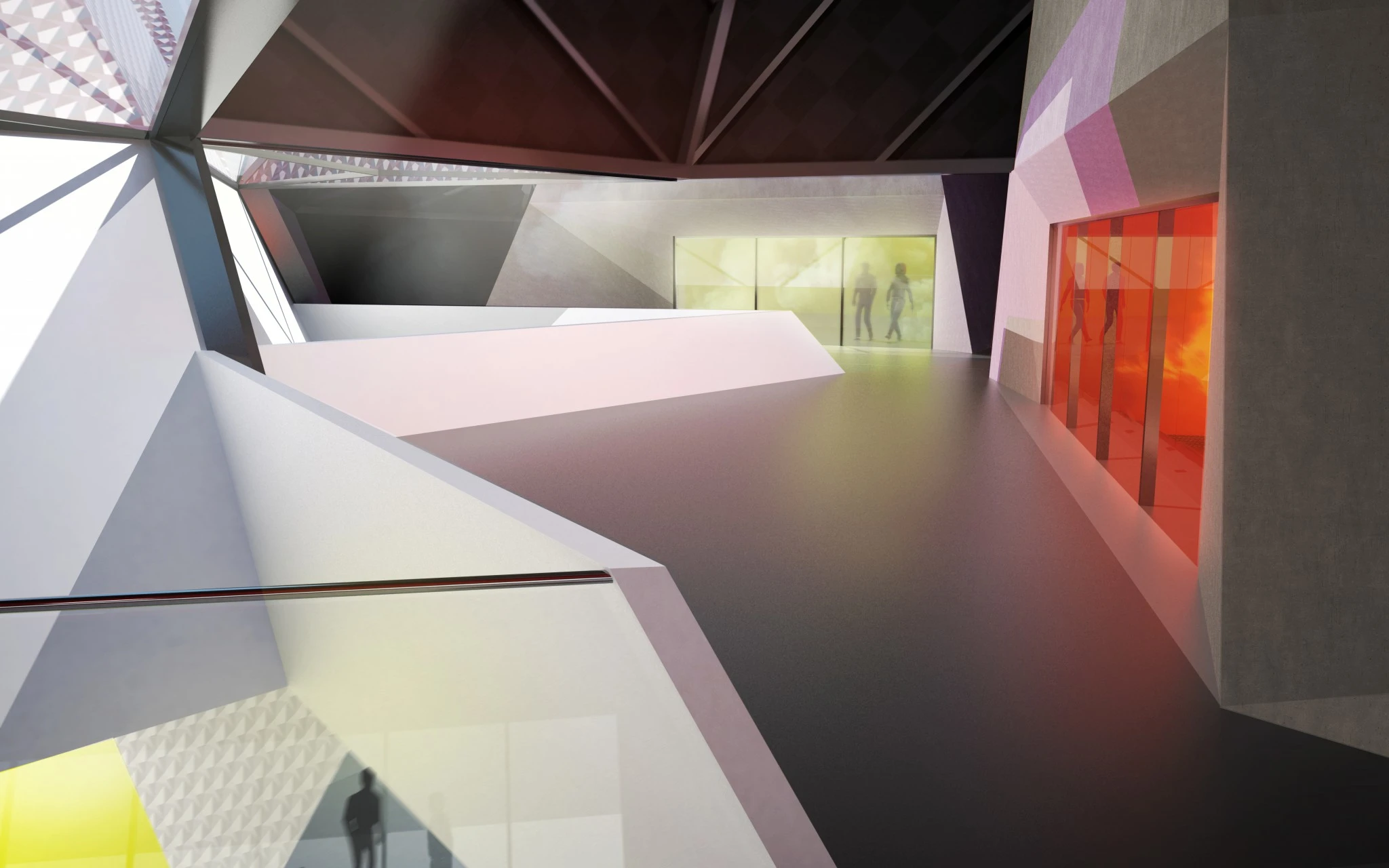

Second Floor Simulation Chambers

Render-Interior-Entry2-2048x1280

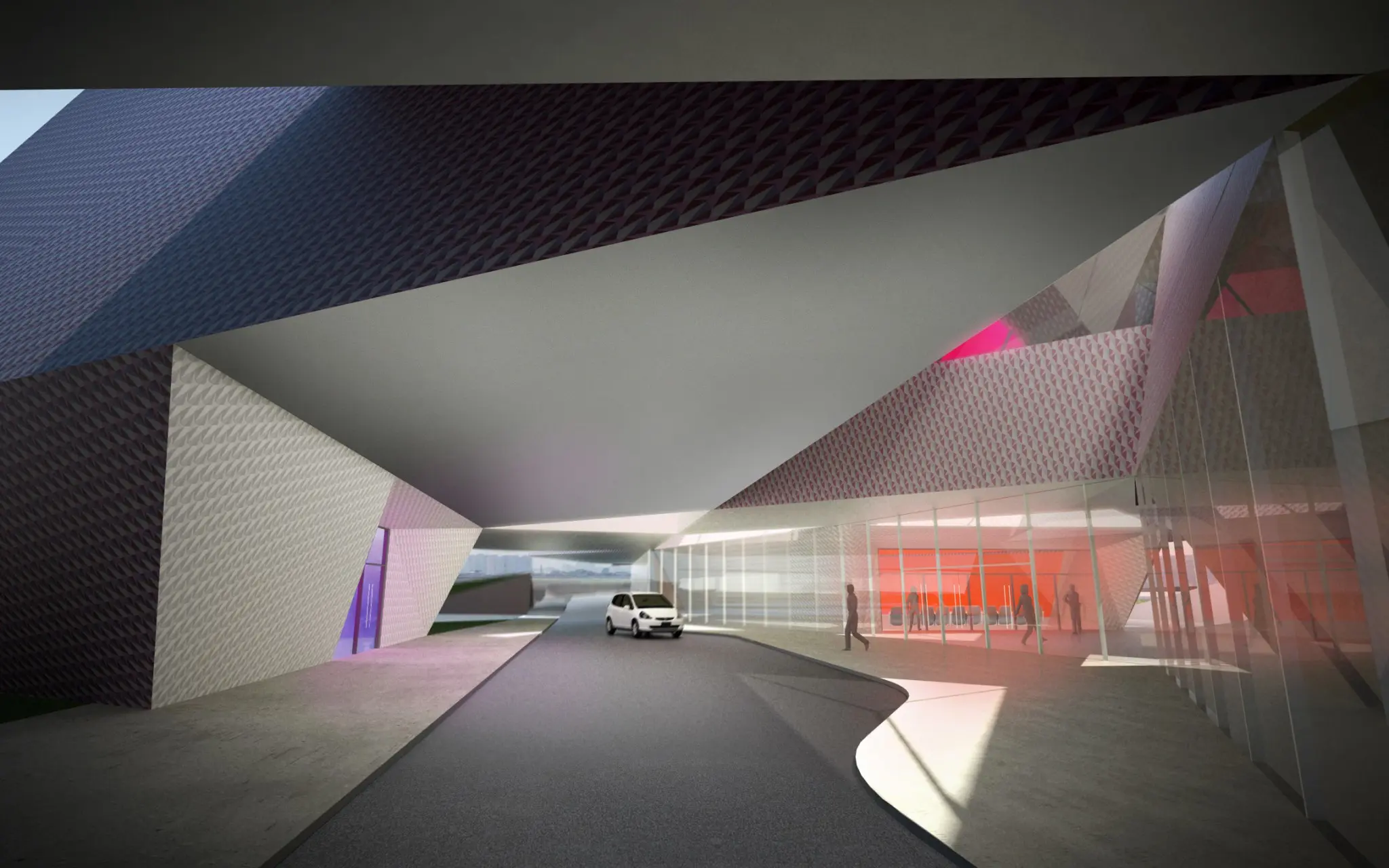

The dramatic entry drive moves under the building allowing for convenient access for conference goers, visitors and employees. On the interior, a single, multilevel loop provides access from ticketing through the lobby and eventually up a grand stair to each element of the education center.

Project Team: David Freeland, Brennan Buck, Teoman Ayas
